2013 HONOR VL-160C CNC 2-AXIS VTL WITH FANUC OiTC CONTROL LOADED WITH ALL TOOLING! Heavy Duty Vertical Ram Vertical Turning Center Equipped with all Options and Tooling in ATC in Photos * List in Process! 30+ K Added Value
| Table Dia | 63" | 1,600.2 mm |
| Swing | 78" | 1,981.2 mm |
| Work Ht-U/R | 49.21" | 1,249.9 mm |
| Power | 60 W | 0.1 hp |
| RPM | 250 RPM | 250 RPM |
| Control | CNC (Fanuc 0i-TC) | CNC (Fanuc 0i-TC) |
| Dimensions | Lenght 228" x Width 157" x 216" | Lenght 228" x Width 157" x 216" |
| Weight | 62000 Lbs. | 62000 Lbs. |
2013 HONOR VL-160C CNC 2-AXIS VTL WITH FANUC OiTC CONTROL LOADED WITH ALL TOOLING!
Heavy Duty Vertical Ram Vertical Turning Center Equipped with all Options and Tooling in ATC in Photos * List in Process! 30+ K Added Value
HEADSTOCK
Chuck Size (in.) Std: 62.990
Max. Swing: 78.000
Turning Diameter Max: 78.000
Turning Length (in.) Max: 49.200
Main Spindle RPM 3-250 RPM
Main Motor 60.00 PP.
Speed Ranges: 2 Speed Gear Box
High -Low Range
TOOLING
Primary Tool Carrier: ATC 16 Tools
Tool Shank Size (in.): Square:1.500 Round:2.000
AXES AND TRAVELS
Number of Axes 2-Axis
Travel Max Feed Rapid Rate
X1 Std. 45.200 in. 394 ipm
Z1 Std. 35.400 in. 394 ipm
WEIGHTS AND MEASURES
Length 228in.
Width 157in.
Height 216in.
Weight 62,600 lbs.
Special Timing Pricing Please Call or Email Thank You!
Machine Operation Videos!
www.transferbigfiles.com Cut Paste Browser Links!

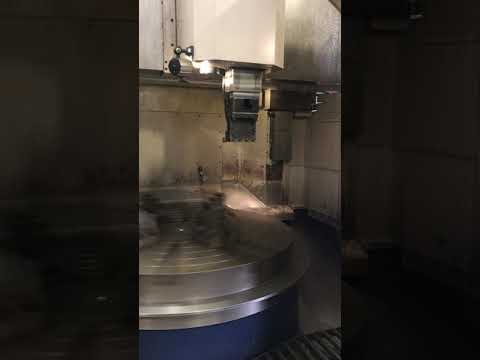

2013 Honor VL-160C 3- Operation Video Links ATC Operation / Table Operation / Tool Changer Index Operation!
http://tbf.me/a/4ex31
