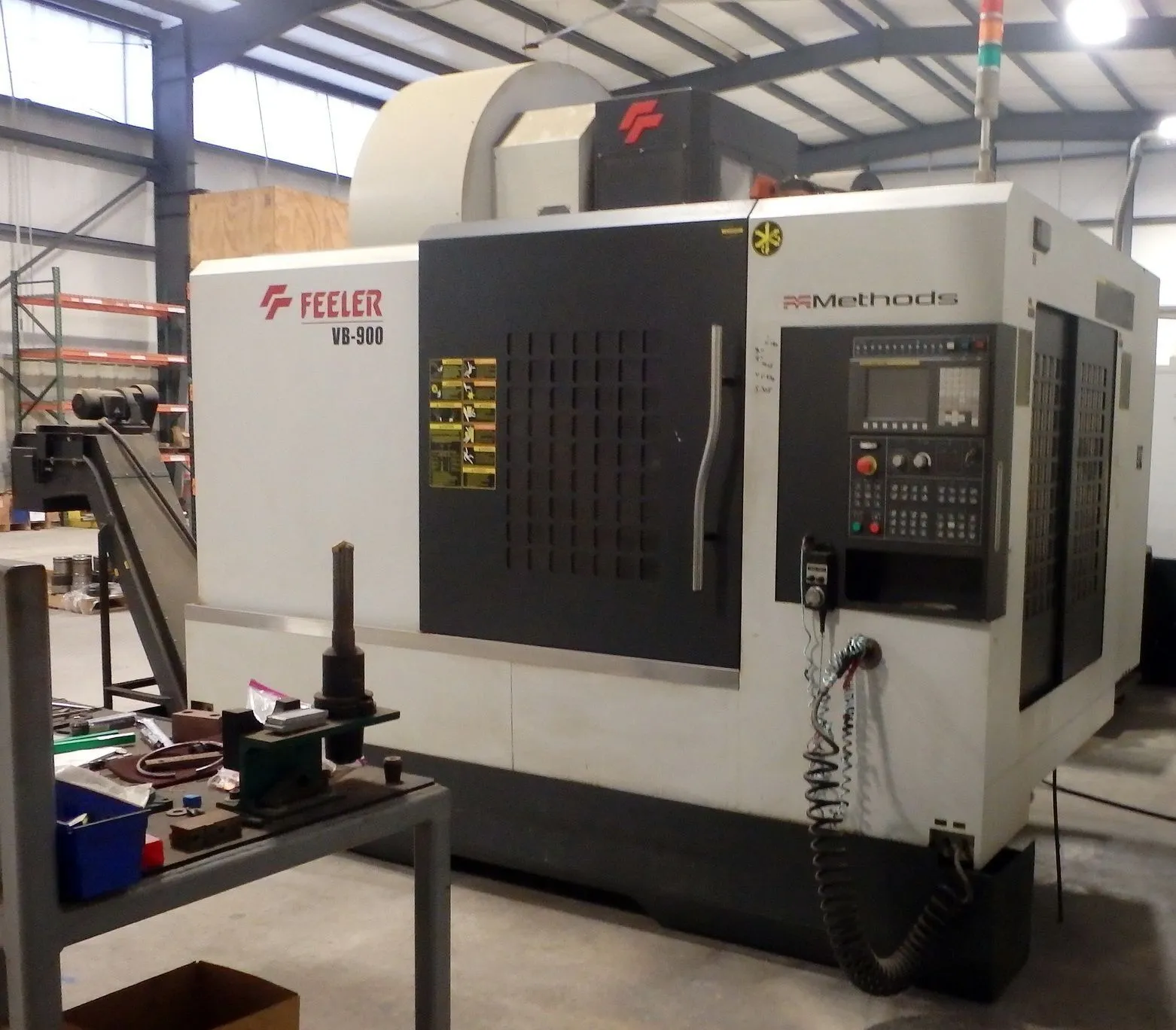

2012 Feeler VB-900 50 Taper Vertical Machining Center with Fanuc Oi-MD Control, CAT-50, 30 ATC, Spindle Oil Chiller, HP Through Spindle Coolant, Rigid Tapping, Chip Conveyor
| X | 35.4" | 899.16 mm |
| Y | 24" | 609.6 mm |
| Z | 23.6" | 599.44 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | 50 | 50 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 45.3" | 1,150.6 mm |
| # Axis | 3 | 3 |
Table Size.....................45.3" x 23.6"
Max. Workpiece Weight..........2,200 LBS
Spindle Nose to Table..........4.3" - 28"
X-Axis Travel..................35.4"
Y-Axis Travel..................24"
Z-Axis Travel..................23.6"
Spindle Motor..................25 HP
Spindle Taper..................CAT-50
Spindle Speed..................8,000 RPM
Number of Tools................30 ATC
Tool Change Time C-to-C........1.90 sec tool-to-tool
Max. Tool Length (in.).........11.80"
Max. Tool Diameter (in.).......5.9" (with empty adacent pockets)
Max. Tool Weight...............17.60 LBS
Fanuc 0i-MD CNC Control
50 Taper Spindle
Spindle Oil Cooler
Rigid Tapping
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
