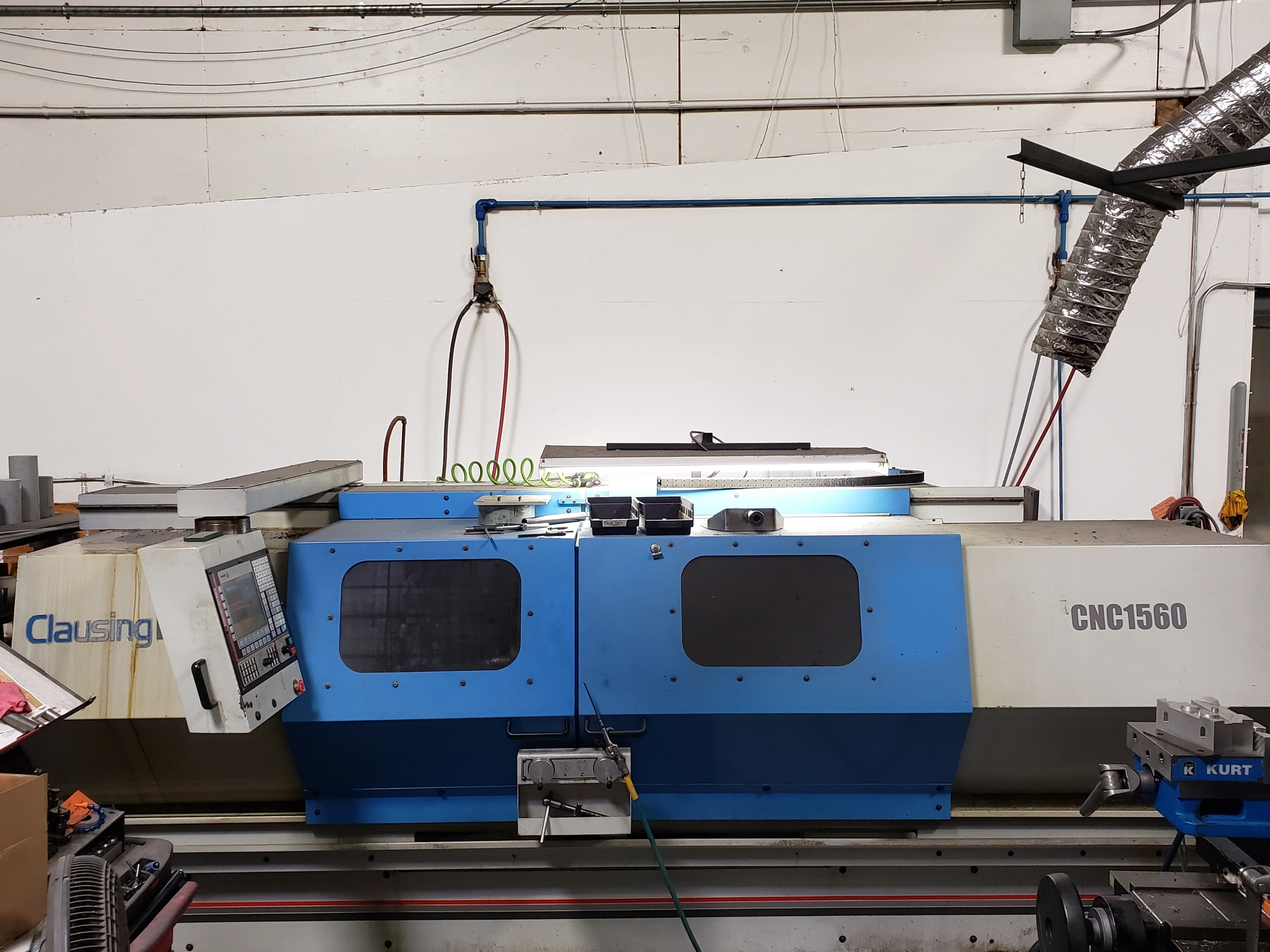

2000 Clausing CNC 1560 CNC Turning Center with Fagor CNC Control, 10" 3-Jaw & 4-Jaw Chucks, 8 Station Turret, Tailstock, and Tool Holders Included
| Swing | 15.75" | 400.05 mm |
| Machining Length | 60" | 1,524 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 15.75" | 400.05 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (FAGOR) | CNC (FAGOR) |
| Dimensions | 159" x 63" x 68" | 159" x 63" x 68" |
| Weight | 5,000 LBS | 5,000 LBS |
Max. Swing.........................15.75"
Swing Over Cross Slide.............8.3"
Max. Turning Diameter..............15.75"
Max. Turning Length................60"
Spindle Motor......................10 HP
Spindle Bore.......................2.6"
Spindle Speed......................3,000 RPM
Feedrate (X/Z).....................393 IPM
Machine Dimensions.................159" x 63" x 68"
Machine Weight.....................5,000 LBS
Fagor CNC Control
10" 3-Jaw & 4-Jaw Chucks
8 Station Turret
Tailstock
Misc. Tool Holders
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
