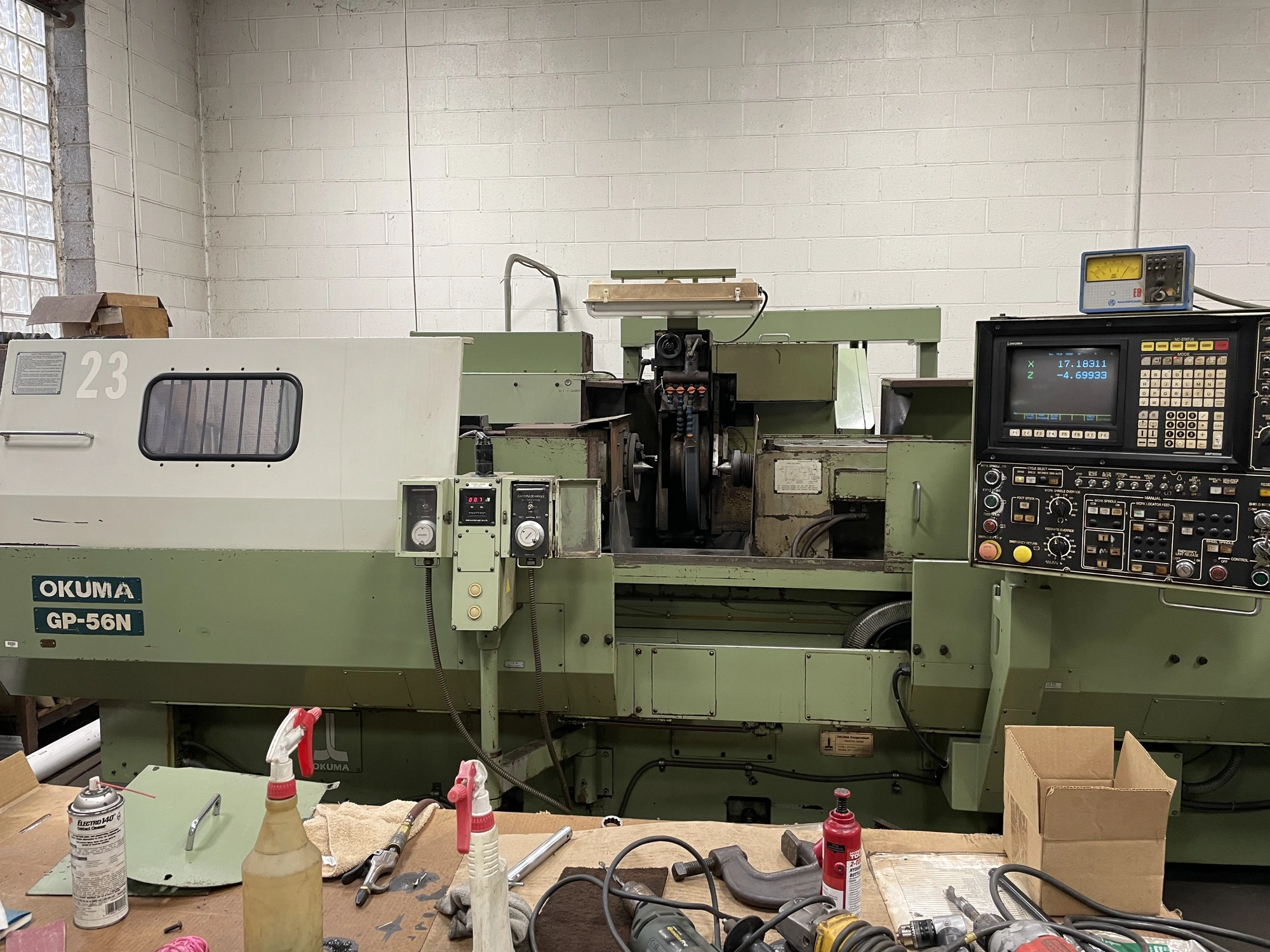

Okuma GP-56N Plain Type Cylindrical Grinder - OSP-5020G Control, Marposs E9 Gauging System, Universal Workhead, Paper Filtration, and Tooling Package Included.
Swing | 26" | 660.4 mm |
Centers | 59" | 1,498.6 mm |
Plain or Angle Head | Plain | Plain |
Grinding Wheel Dia. | 24" | 609.6 mm |
Wheel Power | 15 hp | 11.2 kW |
Wheel Speed | 2,100 RPM | 2,100 RPM |
Gauging | Yes | Yes |
Control | CNC (OSP-5020G) | CNC (OSP-5020G) |
Swing........................22.83"
Between Centers..............59.06"
Max. Grinding Diameter.......15.75"
Wheel Size...................4" x 24" x 10"
Max. Grinding Wheel Width....4.92"
Max. Workpiece Weight........660 LBS
Wheel Spindle Speeds.........2,100 RPM
X-Axis Travel (Wheelhead)....15.55"
Auto Infeed Speed............0.000047 - 236 IPM
Positioning Speed............472 IPM
Z-Axis Travel................67.32"
Workhead Center Hole.........MT-5
Work Spindle Speed...........600 RPM
Footstock Center Hole........MT-5
Footstock Travel.............5.31"
Automatic Stroke.............2.56"
Wheel Spindle Motor..........15 HP
Work Spindle Motor...........5 HP
OSP-5020G CNC Control
Marposs E9 Gauging System
Universal Work head
Paper Filtration
Tooling Package: Centers, Dogs, Grinding Wheels, etc.
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
