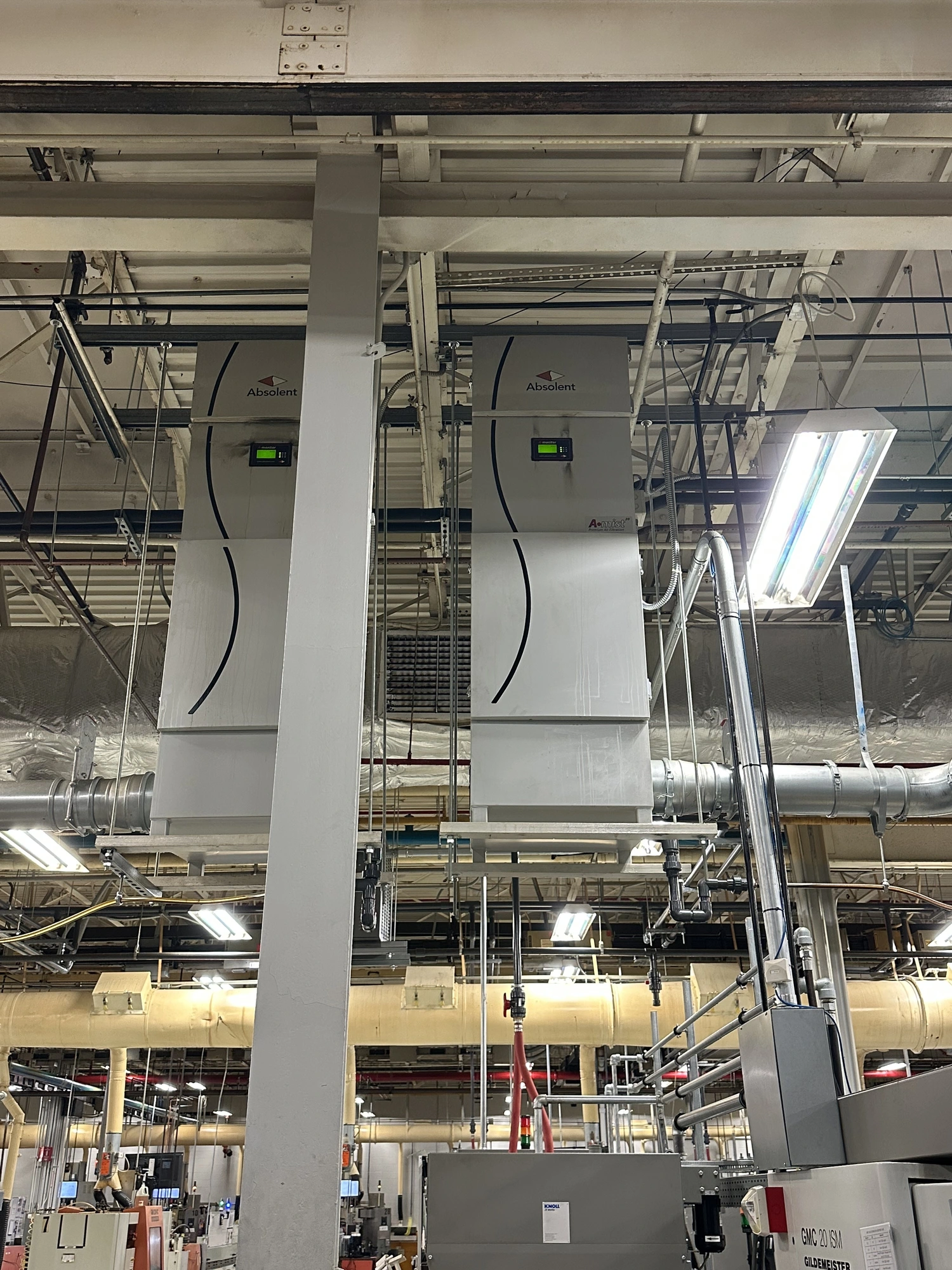

Absolent A-Mist 20 1,180 CFM Mist Collection System
| Flow Rate | 1,180 ft³/min. | 33.4 m³/min. |
| Power | 3 hp | 2.2 kW |
| Dimensions | 26" x 25" x 82" | 26" x 25" x 82" |
| Weight | 474 | 474 |
DESCRIPTION:
Continuous duty coalescing fiber bed mist collection system
SPECIFICATIONS:
Main Motor.................3 HP
Capacity...................1,180 CFM
Dimensions.................26" x 25" x 82"
Weight.....................474 lbs
3HP direct drive centrifugal fan
sound attenuated fan chamber
coalescing fiber bed filter stage one
coalescing fiber bed filter stage two
final HEPA safety filter
digital differential pressure gauge
hinged access doors
FPT drain outlet
**USED FOR CNC MULTI SPINDLE SCREW MACHINES
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
