2 Ton Denison, Single Phase, 3" stroke, 10" DL, 11" x 8" bed, #29462
| Tonnage | 2 T | 1.814 t |
| Stroke | 3" | 76.2 mm |
| Daylight | 10" | 254 mm |
| Bed (L-R) | 11" | 279.4 mm |
| Bed (F-B) | 8" | 203.2 mm |
| IPM Closing | 600 in/min. | 1,524 cm/min. |
| IPM Pressing | 50 in/min. | 127 cm/min. |
| Up or Downstroke? | Downstroke | Downstroke |
| Throat Size | 4.875" | 123.82 mm |
| Dimensions | 19" L-R x 24" F-B x 30" H | 19" L-R x 24" F-B x 30" H |
| Weight | 500 lbs | 500 lbs |

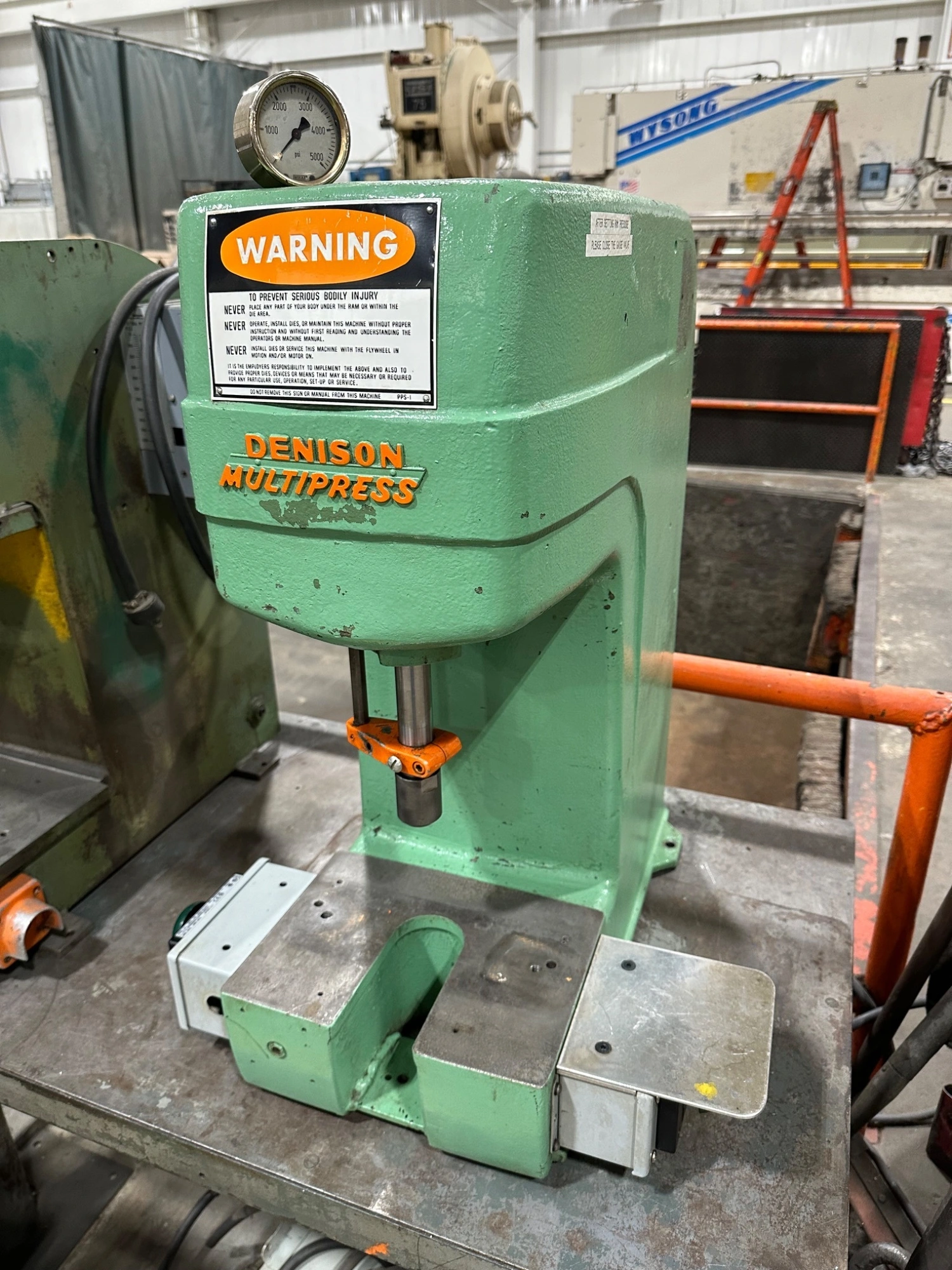

2 TON DENISON MODEL A HYDRAULIC GAP FRAME PRESS
Model A
Table model
Bed area: 11" L-R X 8" F-B with 2.5" U-slot
Stroke: 0 3" maximum
Daylight opening (total): 10" maximum
Throat depth: 4.875"
Ram diameter: 2.25"/1.125" @ 1000 PSI - 2 tons
Power unit: Denison model a pump, driven by
3/4 HP 1725 RPM 115/230/1/60 motor
Speeds approx.: 600"/minute closing
50"/minute pressing to 2 tons
200"/minute return
Weight approx. 500 lbs.
Overall dimensions approx. 19" L-R x 24" F-B x 30" H
Serial no. 223
Stock no. 29462
FOB ELK GROVE VILLAGE, IL
Controls:
Pushbutton operation with stroke & pressure controls
Dual palm buttons
Pressure gauge
