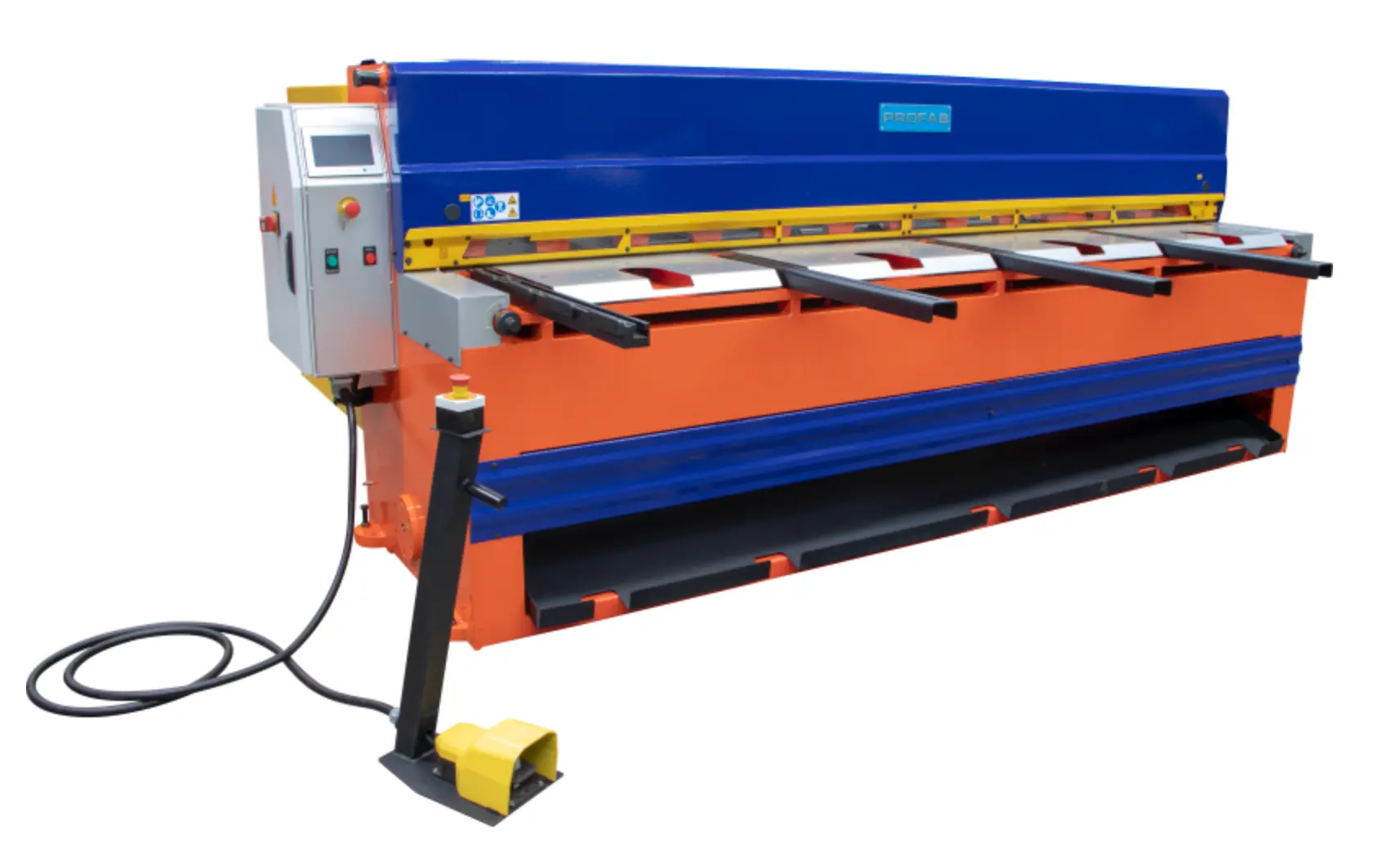

Introducing the versatile PROFAB Shear Pro sheet metal shear featuring both front and rear material return!
| Max Gauge | 10 gauge | 10 gauge |
| Length of Blade | 120" | 3,048 mm |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 30" | 762 mm |
| Power | 15 hp | 11.2 kW |
| SPM | 35 strokes/min. | 35 strokes/min. |
| Dimensions | 142”W x 88.5”D x 55”H | 142”W x 88.5”D x 55”H |
| Weight | 8,819 lbs | 8,819 lbs |
Brand: PROFAB
Model: Shear Pro 1010M
Capacity: 10’ x 10 GA Mild Steel, 14 GA SS
Features:
35 strokes per minute
30″ front-operated, motorized back gauge
Touch-screen NC control
Rear pneumatic sheet support system and Return to Front Feature
98″ side extension squaring arm
Two front support arms
Easy blade gap adjustment from front
Material shadow line light system
Finger guard system on front
Cut part counter
Single, inch and continuous stroke
Foot pedal control with emergency stop
Ball transfer table on bed of shear
230/460-volt, 3-phase power
15 HP Motor
Dimensions 142”W x 88.5”D x 55”H
Weight: 8,819 lbs
TERMS:
FOB FACTORY, Charlotte Hall, MD, Includes manufacturer’s 1-year warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
