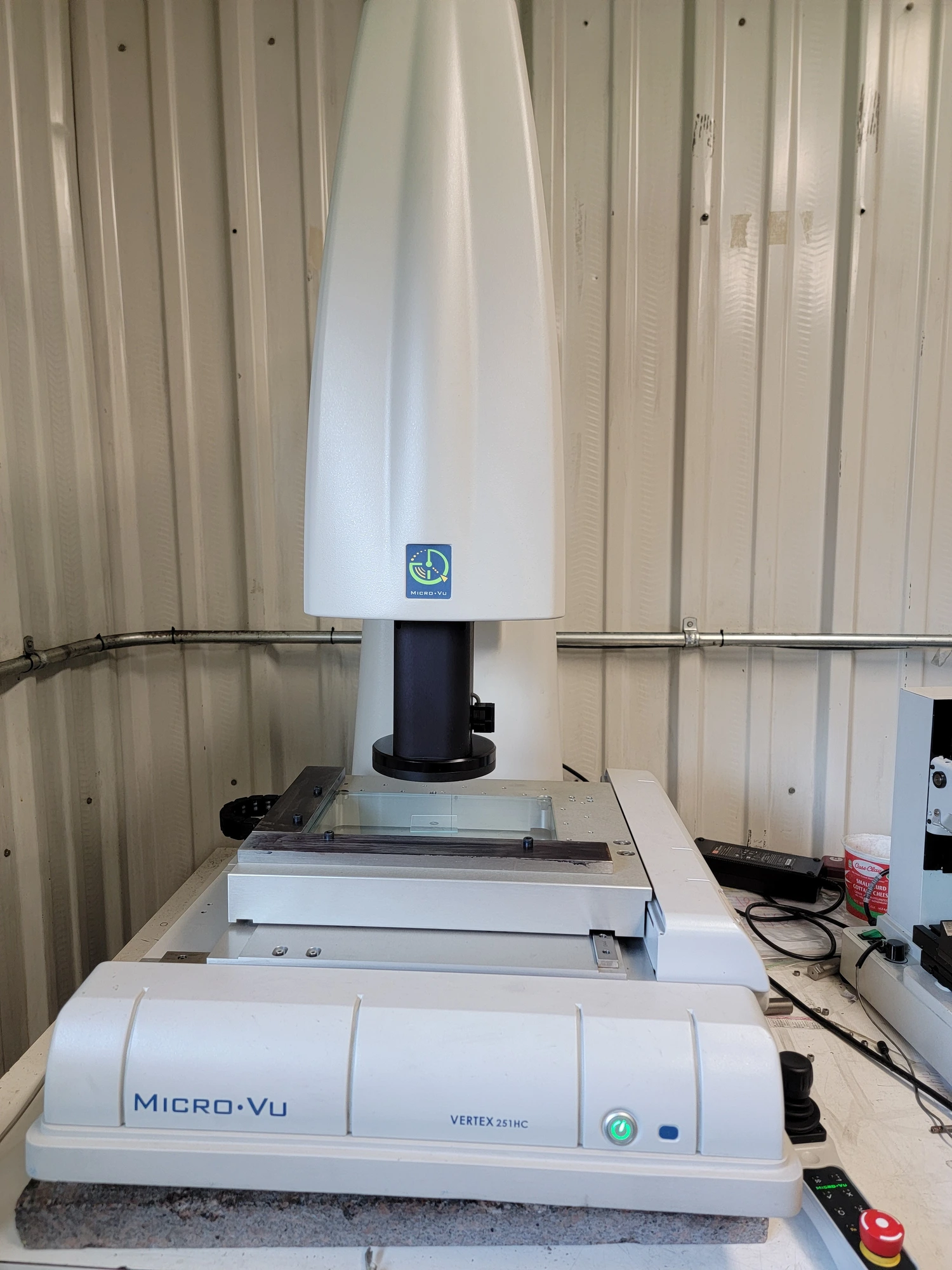

Microvue Vertex 251HC Coordinate Measuring Machine, New in 2013
| X | 9.8" | 248.92 mm |
| Y | 6.2" | 157.48 mm |
| Z | 6.2" | 157.48 mm |
| Dimensions | 23" x 31" x 40" | 23" x 31" x 40" |
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an
inspection of the machine(s) and accessories prior to purchase.
General Specifications:
X-Axis Travel: 9.8"
Y-Axis Travel: 6.2"
Z-Axis Travel: 6.2"
Accuracy (X,Y/Z): 2 + L/250 um / 2 + L/200um
Encoder Resolution: 0.1 um
Lens Zoom: 6:1
Hand Controls
Color Camera
6:1 zoom Lens
Macro Light Ring
computer
Buyer will need to install and recalibrate after moving.
