| X-Axis | 19.6" | 497.84 mm |
| Y-Axis | 17.7" | 449.58 mm |
| Z-Axis | 17.7" | 449.58 mm |
EQUIPPED WITH:

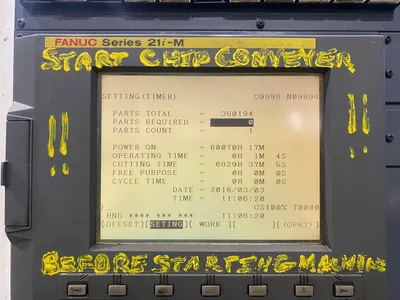

Fanuc 21i-M Control
180 Degree Rotary Pallet Changer 21" x 18"
Hydraulic Clamping
4-Axis
Pulse Generator
40 ATC
Through Spindle Coolant
Auto Tool Length Measurement
Inch/Metric Conversion
Custom Macro B
Additional M Functions: M20-27
Tape Storage - 40M
Chip Conveyor
Coolant System
Mist Collector
Signal Tower
SPECIFICATIONS:
MAIN SPINDLE:
Top RPM/HP: 10,000/7.5 Kw
X Axis: 19.6"
Y Axis: 17.7"
Z Axis: 17.7"
Rapid Traverse: 1575 IPM
Cutting Feed: 394 IPM
Max Weight of Workpiece: 442 lbs
No. of Pallets: 2
MACHINE DIMENSIONS:
Length: 59"
Width: 145"
Height: 118"
Machine Weight: 17,180 lbs
