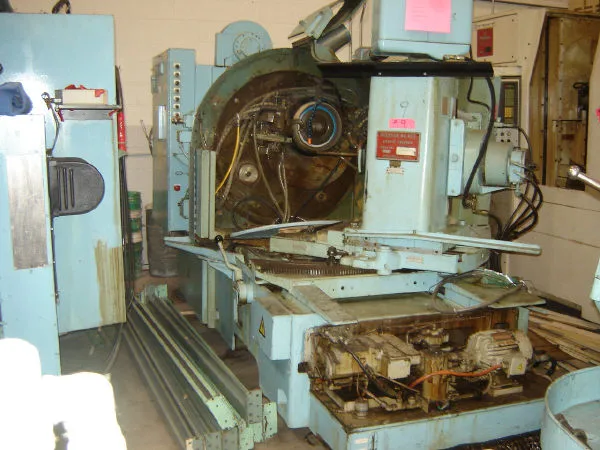

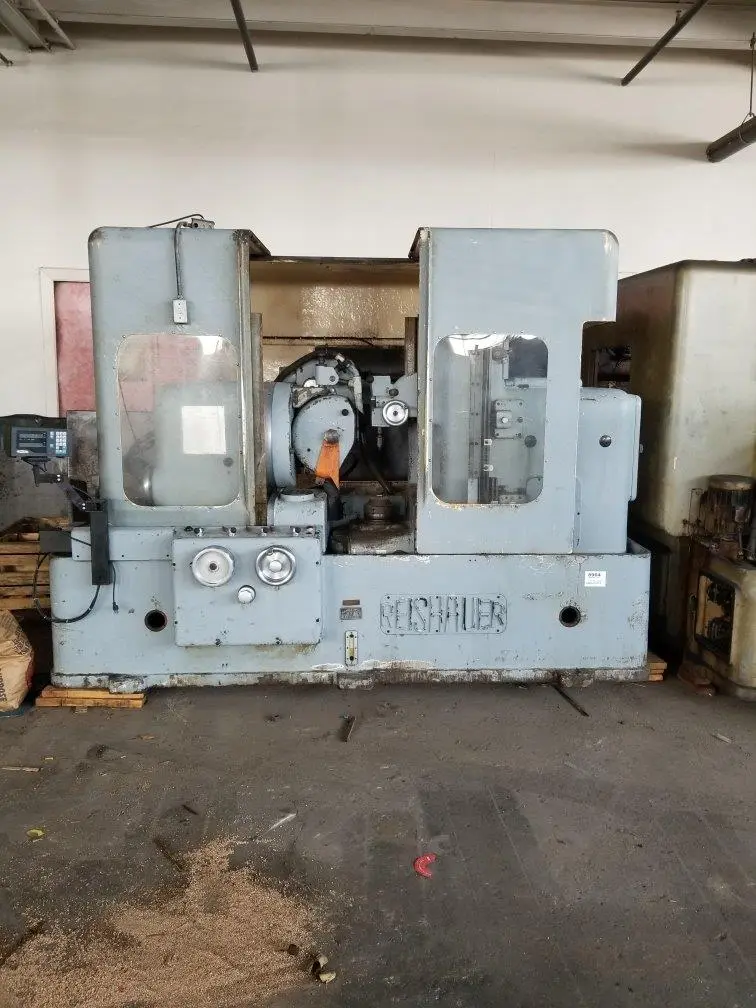

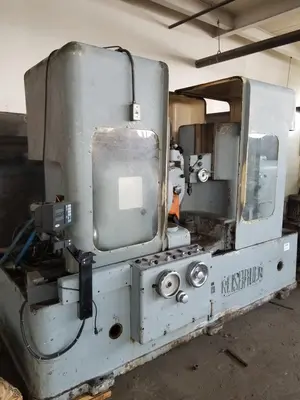

MODEL ZB REISHAUER GEAR GRINDER
| Maximum Workpiece Diameter | 27.5" | 698.5 mm |
| Axial Travel | 11" | 279.4 mm |
| Diametral Pitch | 3.5 dp | 3.5 dp |
| Grinding Spindle Speed | 1,650 RPM | 1,650 RPM |
| Grinding Wheel Diameter | 15.75" | 400.05 mm |
| Control Manufacturer | Conventional | Conventional |
Working Range:
-Max. Workpiece Diameter:27.5"
-Min. Workpiece Diameter:2"
-Max. Number Of Teeth:240
-Min. Number Of Teeth:16
-Max. Pitch:DP 3,5
-Min. Pitch:DP 18
-Max. Grinding Length:11"
-Max. Clamping Length:22.5"
-Speed Of The Grinding Worm:1650 RPM
-Automatic Infeed Per Work-Slide Stroke, Adjustment Between:0.0004"-0.0032"
-Gringing Worm Dimensions:
-Maximum Diameter:15-3/4"
-Minimum Diameter:11"
-Bore:6.3"
-Weight of the Machine,Net Approx:17,000Lbs.
Change Gears
Coolant System

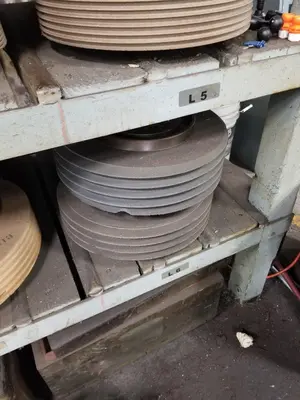

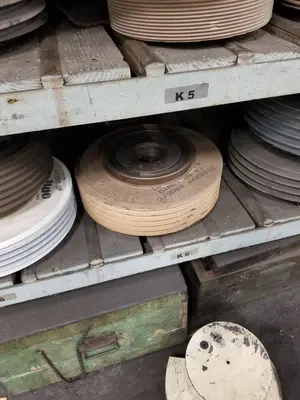

Wheel Mounts
Worklight
