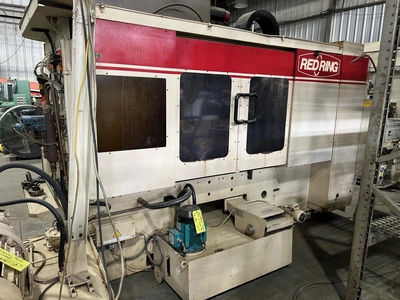

| Maximum Workpiece Diameter | 400 mm | 15.748" |
| Control | CNC (16M) | CNC (16M) |
| Dimensions | 121" x 99" x 105" | 121" x 99" x 105" |
| Weight | 18,000# | 18,000# |
SPECIFICATIONS:
Min/Max Module (diagonal cycle): 1-8 mm
Min./Max Distance Between Workp./Shaving: 119-329mm
Min/Max. Diameter of the Shaving Cutter: 178-254mm
Shaving Cutter Bore Diameter: 63.5 (100)mm
Min./Max. Width of Shaving Cutter (std): 19-50.8mm
Max. Tooth Width to be Shaved (std): 180mm
Table Oscillation: +/- 1.7 degrees
Axis "Z" Stroke: 210mm
Axis "X" Stroke: +/- 15mm
Axis "U" Stroke: +/- 90mm
Axis "W" Stroke: +/- 15mm
Axis "Y" Stroke: +/- 60mm
Net Weight Electric Cabinet Included: 8000 Kg.(18,000 lbs.)
Machine Dimensions LxWxH: 121" X 99" X 105"
Dimensions for Electrical Cabinet: 87"L X 24"W X 120"H
Fanuc 16M Control
Power Stocks w/Centers
Crowning
Coolant System
Chip Separator
Full Machine Enclosure
Hydraulic System
Rittal Refrigeration
Pneumatic System
Worklight
Manuals
