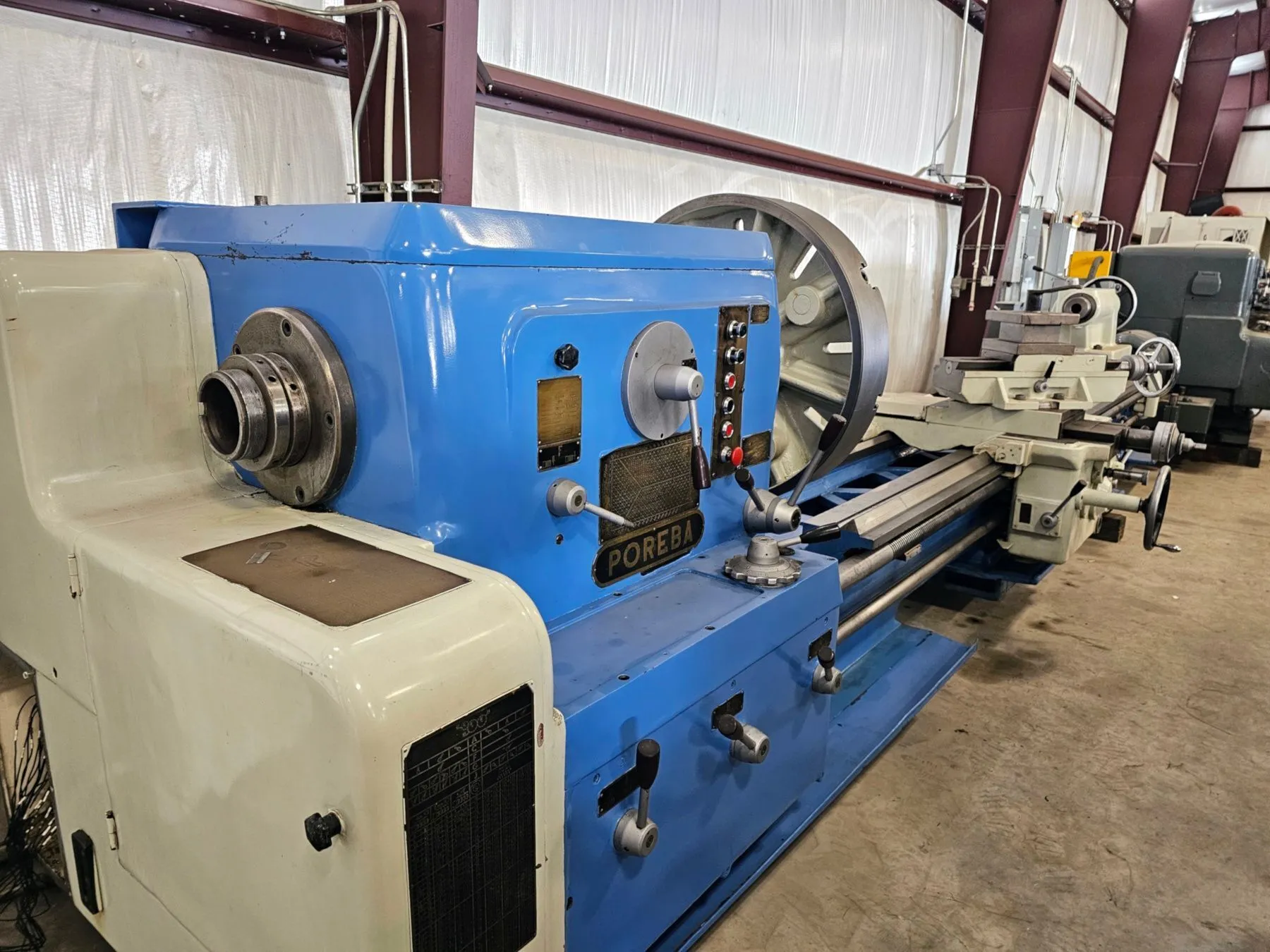

40"X172" POREBA ENGINE LATHE MODEL TYPE TR100B
| Swing | 40" | 1,016 mm |
| Swing Over Cross Slide | 29" | 736.6 mm |
| Centers | 172" | 4,368.8 mm |
| Spindle Bore | 4.25" | 107.95 mm |
| RPM | 630 RPM | 630 RPM |
| Power | 40 hp | 29.8 kW |
| Dimensions | R-L 275" X F-B 84" X Height 72" | R-L 275" X F-B 84" X Height 72" |
| Weight | 28,000 Lbs. | 28,000 Lbs. |
Swing Over Bed Ways.................................40"
Swing Over Cross Slide..............................29"
Swing In Gap........................................53"
Length In Front Of Nose.............................25"
Center Distance.....................................172"
Spindle Hole........................................4.250"
Spindle Speeds......................................6.3 To 630 Rpm's
Spindle Nose........................................A-2-11
Chuck Size..........................................32" 4-Jaw
Feeds Cross.........................................0.035 TO 5.0
Feeds Longitudinal..................................0.07 To 10.0
Threads Inch........................................1/2 To 60 TPI
Threads Metric......................................025 TO 120 MM
Lead Screw Diameter.................................2-3/4"
Tail Stock Taper....................................# 6 Morse
Tail Stock Travel...................................12"
Tail Stock Diameter.................................5-1/2"
Main Motor..........................................50 Hp.
Floor Space.........................................R-L 275" X F-B 84"
Machine Height......................................72"
Machine Weight......................................28,000 Lbs.
Taper Attachment....................................Yes
Thread Dial.........................................Yes
Threads Inch........................................Yes
Threads Metric......................................Yes
Rapid Traverse......................................Yes
Note:
Machine has been cleaned, painted and cycled.
