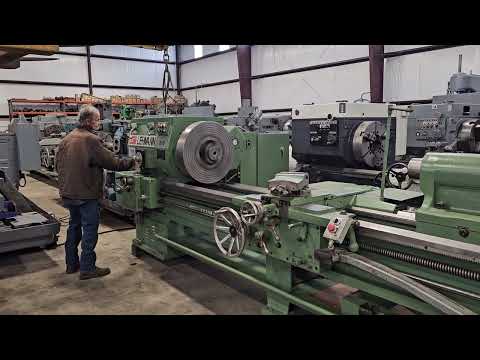

USED 27.5 X 120" LEHMANN MODEL 2516 HOLLOW SPINDLE LATHE WITH 6.125" SPINDLE BORE
| Swing | 27.5" | 698.5 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 6.125" | 155.57 mm |
| RPM | 793 RPM | 793 RPM |
| Power | 30 hp | 22.4 kW |
| Dimensions | R-L 18' X F-B 60" X Height 65" | R-L 18' X F-B 60" X Height 65" |
| Weight | 14,000 Lbs. | 14,000 Lbs. |
USED 27.5 X 120" LEHMANN MODEL 2516 HOLLOW SPINDLE LATHE WITH 6.125" SPINDLE BORE,
S/N , New in 1982.
SPECIFICATIONS:
ACTUALSWING OVER BEDWAYS:........................27”
SWING OVER CROSS SLIDE:..........................16.5”
DISTANCE BETWEEN CENTERS:........................120”
CHUCK SIZE.......................................24” 4-JAW CHUCK (Front)
CHUCK SIZE.......................................18” 4-JAW CHUCK (Rear)
SPINDLE SPEEDS:..................................21 to 793 RPM
SPINDLE BORE:....................................6-1/8”
THREADS (INCH):..................................5/8 to 36 TPI
FEEDS:...........................................0.0055” to .327” IPR
MAIN MOTOR:......................................30 HP 230/460/3/60
HYDRAULIC PUMP MOTOR:............................1 HP
TAILSTOCK TAPER:.................................No. 5 MORSE
TAILSTOCK QUILL DIAMETER:........................3"
TAILSTOCK QUILL TRAVEL:..........................12"
FLOOR SPACE:.....................................R-L 18' X F-B 72"
MACHINE HEIGHT:..................................65"
WEIGHT:..........................................14,000 LBS.
TAPER TURNING ATTACHMENT.........................Yes
COOLANT PAN AND PUMP.............................Yes
METRIC THREADING.................................NO
STEADY REST......................................NO
