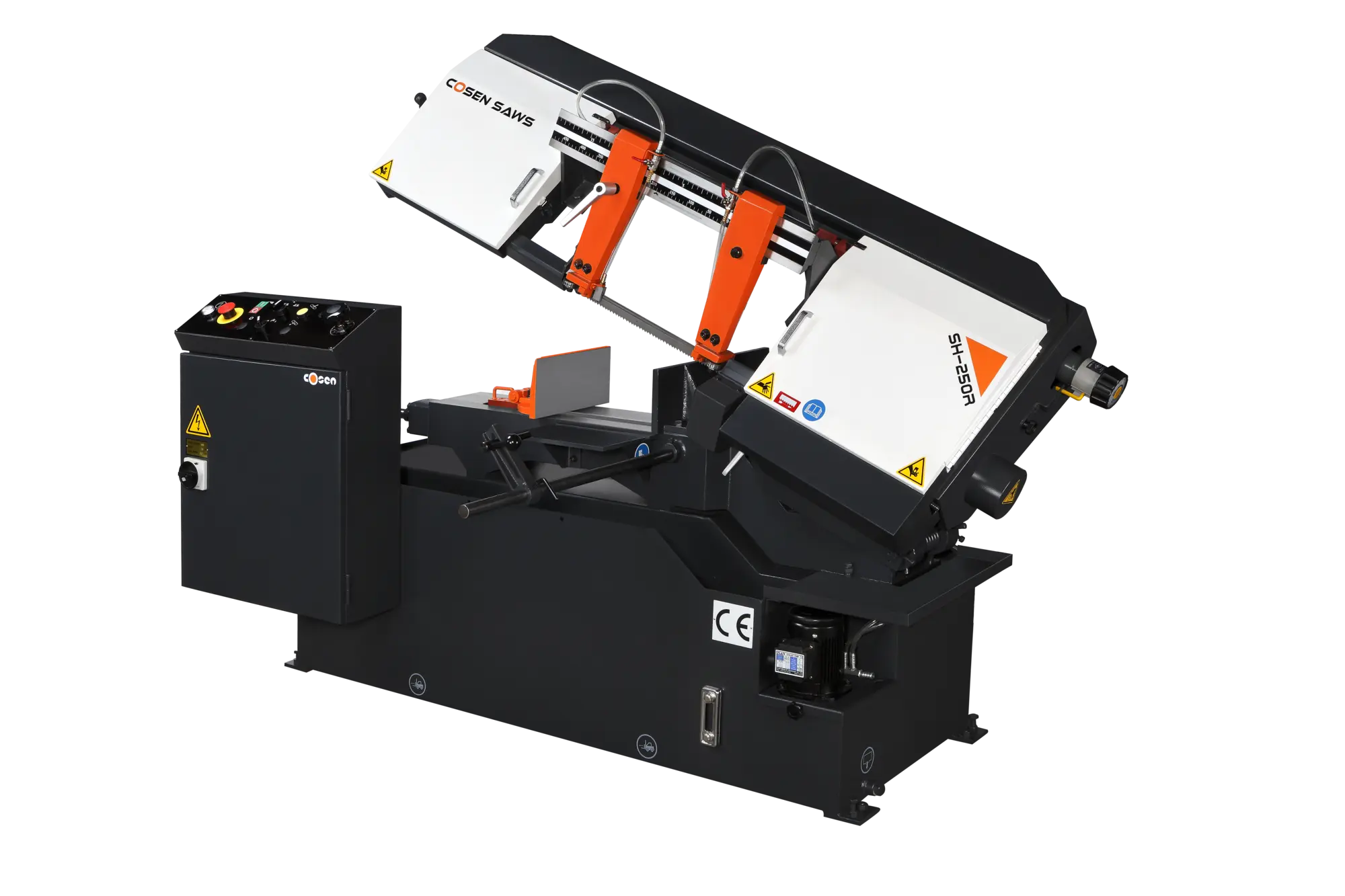

Cosen Model SH-250R Semi-Automatic Horizontal Scissor Style Band Saw
| Rounds-Cap | 10" | 254 mm |
| Square-Cap | 9" | 228.6 mm |
| Type (Auto, Manual, Semi) | Semi | Semi |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 132" | 3,352.8 mm |
| Rect-Cap (W) | 10" | 254 mm |
| Rect-Cap (H) | 11.8" | 299.72 mm |
| Power | 2 hp | 1.5 kW |
| Dimensions | R-L 80.8" X F-B 42.2" X 63.7" Height | R-L 80.8" X F-B 42.2" X 63.7" Height |
| Weight | 1,351 Lbs. | 1,351 Lbs. |
Machine Specifications:
Maximum Cutting Capacity Round........................10”
Square................................................9” x 9”
Rectangular@ 90 Degrees...............................10” x 11.8”
Work Bed Height.......................................25.2”
Blade Variable Speed..................................75,121,190 & 305 FPM
Blade Size............................................11’ x 1.0” x .035”
Motor Saw Blade.......................................2 Hp.
Coolant...............................................1/8 Hp.
Hydraulic.............................................1/4 Hp.
Voltage...............................................230 V, 3 Phase 60
Floor Space...........................................R-L 80.8” x F-B 42.2”
Height................................................63.7”
Weight................................................1,351 LBS.
Machine Features:
Hydraulic cylinder plus precision ground hinge support
Gearbox designed to accept high lateral pressure (no thermal distortion)
Adjustable flood coolant system
Carbide blade guides and bearing provides additional blade support
Variable blade speeds
Rigid cast-iron guide arms
Cast-iron hydraulic vise
Motor driven, synchronized wire blade brush
Adjustable down-feed control
Adjustable material stop
Saw head automatically raises after each cut
Included Accessories
Variable Step-less Pulley Drive
Adjustable material stop
Additional flushing hose for cleaning
Bi-metal saw blade
Operation & parts manual
Optional Accessories:...................................Price
5' stock roller conveyor (RT-5-19LKIT)..................$1,295.00
10' stock roller conveyor (RT-10-19LKIT)................$1,995.00
Buck Boost Transformer for incoming power of 208V or
below (BBT-240D-208D-12.4A).............................$1,495.00
Voltage Change to 460V 3PH..............................$695.00
Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities.These saws exceed many of the standard requirements that operators look for in a band sawmachine. With its rigid construction and superior features, Cosen's SH-250R fits into thatcategory. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut,and durability in a demanding production environment.
Control System:
The operator’s control station, swivel-mounted on the movable vise side of the saw, is
convenient and user friendly. All operator controls are positioned on the top of the control box
and clearly labeled for ease of operation. The electrical components are located inside the
control box with the main lockout disconnect on the front of the control box for safety and easy
maintenance.
