USED 2011 COSEN C320-NC

Overview
Manufacturer:
COSEN
Model:
C-320NC
Year:
2011
Stock #:
S065370
Status:
For Sale
Description

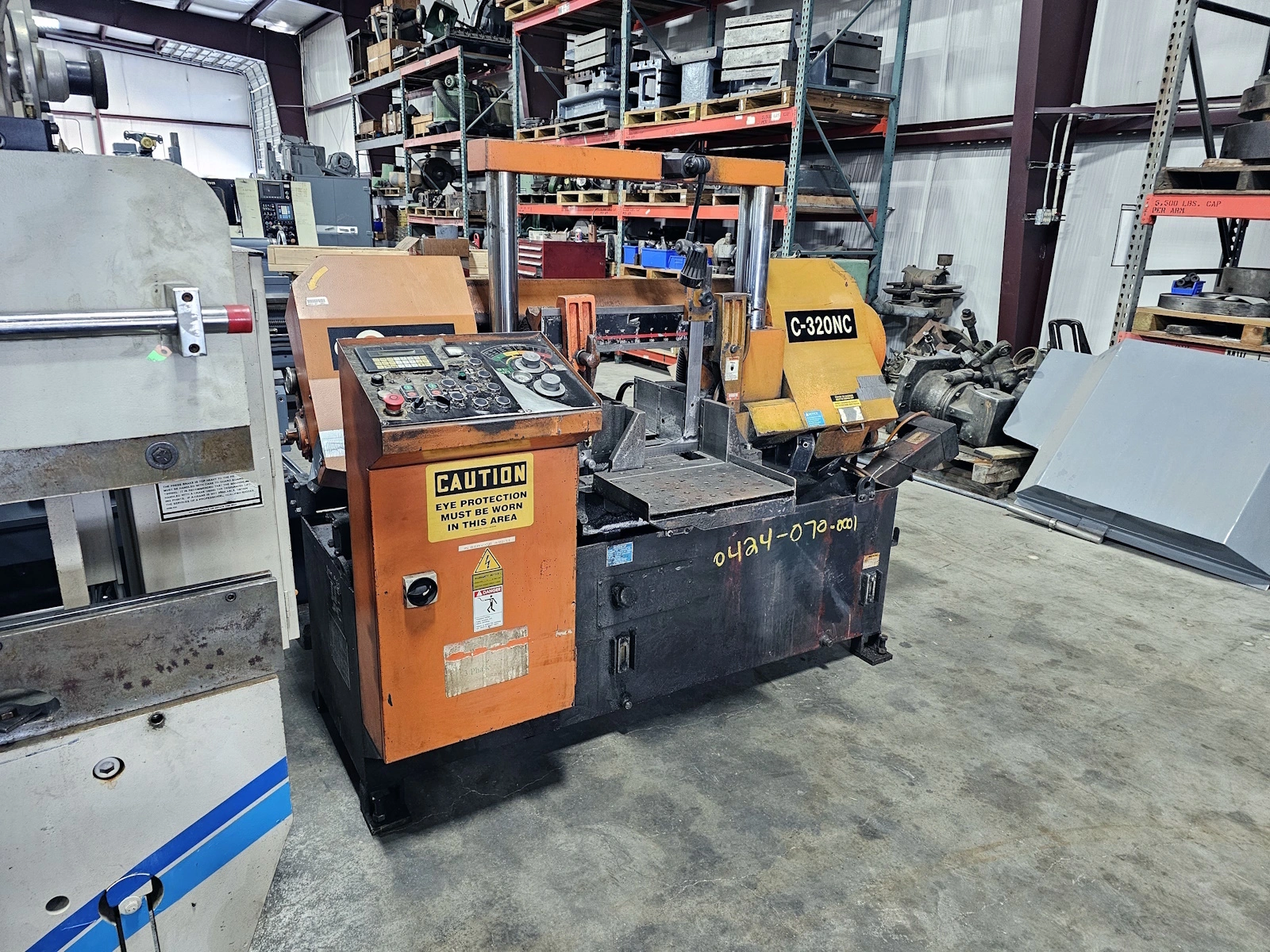

COSEN Model C-320NC 12.6 X 12.6" Fully Automatic Horizontal Dual Column Band Saw

Specifications
Rect-Cap (H)12.6"320.04 mm
Rect-Cap (W)12.6"320.04 mm
Round-Cap12.6"320.04 mm
Square-Cap12.6"320.04 mm
Power55
Blade Width1.25"31.75 mm
Blade Thickness0.042"1.0668 mm
Blade Length167"4,241.8 mm
DimensionsR-L 83" X F-B 83" X Height 70.1"R-L 83" X F-B 83" X Height 70.1"
Weight3,758 Lbs.3,758 Lbs.

Cosens C-320NC is a high production machine which incorporates a massive base,
sturdy saw frame, with an extremely heavy-duty gear box, a 5 HP drive motor, and
a user friendly programmable control for ease of operation. Rugged, dependable,
and advanced technology, are all words that describe Cosens C-320NC production
machine, making it the perfect saw for most production settings.

Machine Specifications:
Maximum Cutting Capacity Round.................................12.6”
Square.........................................................12.6” x 12.6”
Rectangular....................................................12.6” x 15”
Bundle Width:..................................................7.5” - 11.8”
w/ optional top clamps Height:.................................2.8” - 5.5”
Remnant Piece..................................................2”
Work Bed Height................................................31.1”
Blade Variable Speed...........................................66 – 328 fpm
Size...........................................................13’ 11” x 1.25”
...............................................................x .042”
Auto. Material Feed System Job Storage Up to 100 jobs
Single Index Stroke............................................0” to 15.9”
Multiple Stroke Indexing.......................................0” to 999”
(Automatic kerf compensation)
Motor Saw Blade................................................5 HP Wired 480 Volts
...............................................................10 Amps 3 Phase
Hydraulic......................................................1 HP
Coolant........................................................1/8 HP
Floor Space....................................................R-L 82.7” x F-B 82.8”
Height.........................................................70.1”
Weight.........................................................3,758 LBS

Included Accessories
Blade “clip” device eases blade changing, when necessary, by holding the blade
on the band wheel during installation, making it very easy for one person to
change the blade.
Adjustable fence to support bundled cut-off stock
Built in work light
Operation & parts manual
Full Stroke Vises
Double Retracting Vises
Hydraulic Powered Chip Auger

Note: Cleaned, painted and cycled.

Equipped With

Machine Features:
Hydraulic dual column design
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Automatic hydraulic blade tensioning device
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Save-A-Blade feature
Precision feed pressure and feed rate dual valve system for optimal cutting performance
Computer controlled multiple indexing up to 999” max length
