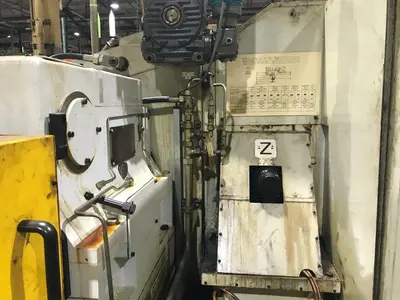

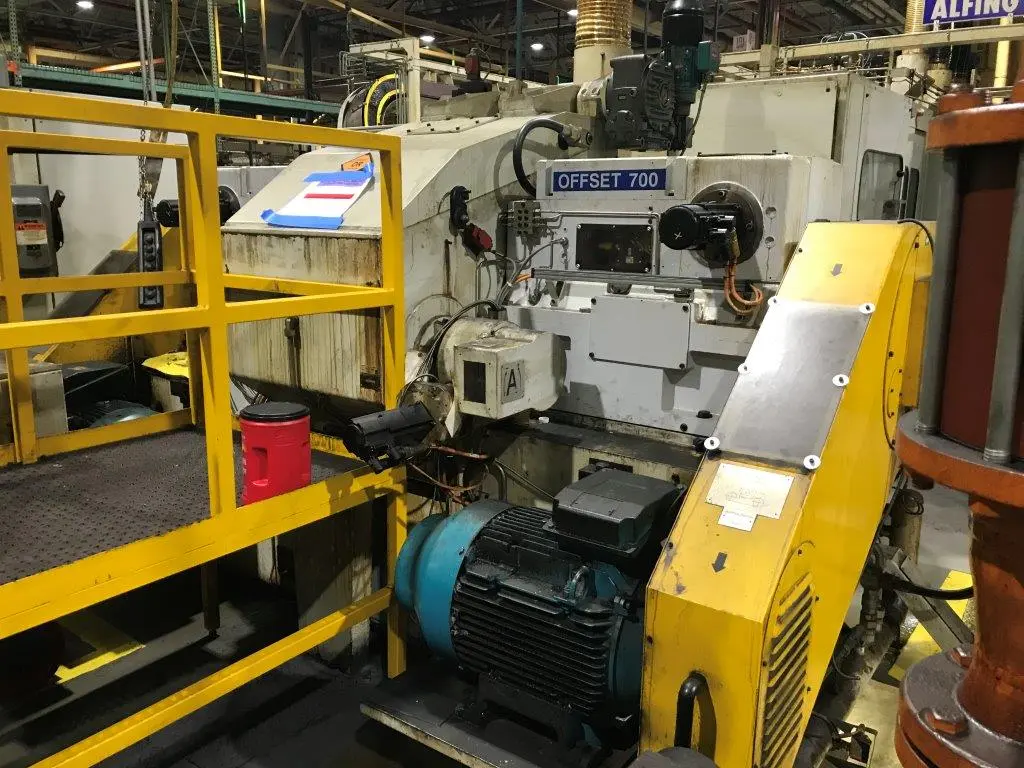

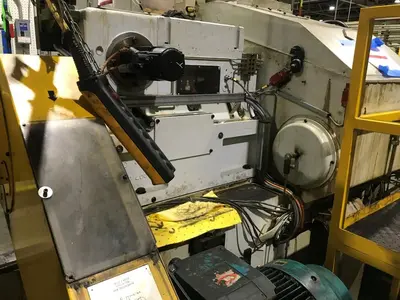

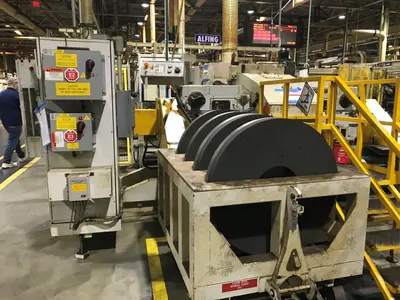

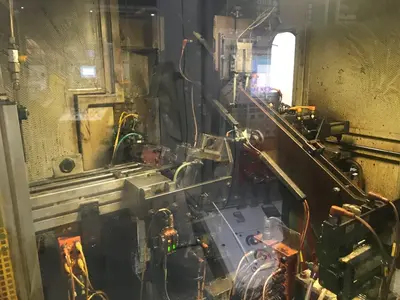

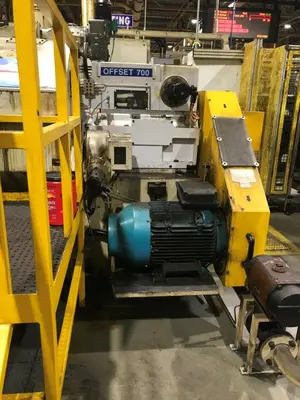

GIUSTINA Grinder R242 to ground big bearings (up to 800mm). All machine's actions are controlled by Bosch Control.
Beside controlling parts grinding process, the NC programs are also an operator guide for the machine set up and a source of information about wheel wear, thus allowing the operator to check wheels without opening the hood.
Grinding Wheel Dia. | 915 mm | 36.024" |
Power | 75 kW | 100.6 hp |
Control | CNC (Bosch Rexroth) | CNC (Bosch Rexroth) |
Weight | 14000 kg | 14000 kg |
Specifications:
Wheel Rotation Axis: Horizontal

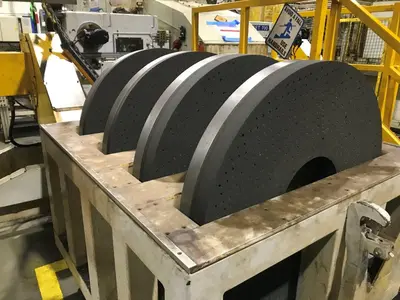

Grinding Wheel Size (OD): 915 mm
Grinding Wheel Size, Usable Width: 65 mm
Grinding Wheel Size, Peripheral Speed: 30 ms
Spindle Motors: 75 kw
Grinding Feedrate: 0.1 - 1000 mm/min
Spindle Type: Moving Quill
Angular Contact Spindle Bearings (Precision): ABEC-7 (ISO4)
Slide Position Accuracy: 0.001 mm
Coolant Flow Rate: 600 l/min
Work Capacity (Approx) Rotary: 20 -200 Dia. In.

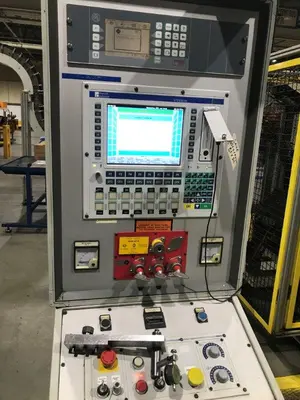

Bosch CNC Control
