Enhance your cutting capability up to 60” x 160” sheet size. The benefit of 10ft plus 3ft for sheet metal fabricators
Efficiency in manufacturing is crucial for success, and one way to achieve it is through material utilization. Maximizing sheet material usage and minimizing scrap is key. Larger sheet sizes generally result in better material utilization. Additionally, when cutting oversized parts, length is more important than width. Acquiring a massive laser machine is no longer necessary for longer parts.
| Sheet-W | 60" | 1,524 mm |
| Sheet-L | 160" | 4,064 mm |
| Wattage | 10 kw | 10 kW |
| IPM | 4500 ipm | |
| Weight | 34,000 lbs | 34,000 lbs |

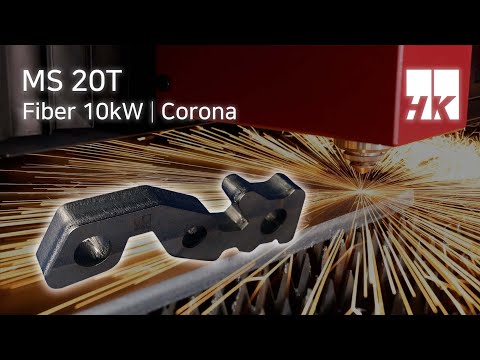

Laser Power: 10kw, Corona Technology
Max. Cutting Size: 160″ x 60″
Positioning Speed: 4500 IPM, X and Y axis combined
Positioning Accuracy: +/-0.0039″ over 120″ travel
Monitor: 21″ Touch Flat Touch Screen
Cutting Head: Autofocus fiberCut head
Head Sensing: Non-contact capacitive sensing
Focal Length: 200mm F.L.
Assist Gas Port: Two(2) – Oxygen, HP Nitrogen
Data Communication: USB, Ethernet LAN
Machine Weight: 34,000 lbs
Electric Consumption: 38KVA *For 4kw fiber incl. Dust collector
