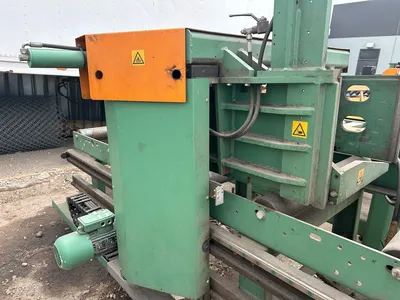

The machine is in storage. A factory-trained technician can be provided at extra cost for installation & operator training.
| Rect-Cap (H) | 16.14" | 409.96 mm |
| Rect-Cap (W) | 27.56" | 700.02 mm |
| Power | 7.4 hp | 5.5 kW |
| Blade Width | 1.61" | 40.894 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 228.35" | 5,800.1 mm |
| Control | CNC | CNC |
| Dimensions | 177.2" x 110.2" x 78.7" | 177.2" x 110.2" x 78.7" |
| Weight | 7,077 lbs | 7,077 lbs |
Cutting Capacity:
At 45° Left:
Round: Ø 16.1"
Rectangle: 16.9" x 16.1"
At 90°:
Round: Ø 16.1"
Rectangle: 27.6" x 16.1"
At 45° Right:
Round: Ø 16.1"
Rectangle: 19.7" x 16.1"
At 30° Right:
Round: Ø 12.6"
Rectangle: 12.6" x 16.1"
Motor and Blade Specifications:
Motor Power: 7.4 HP (5.5 kW)
Saw Blade Size: 228" x 1.61" x 0.051" (5800 x 41 x 1.3 mm)
Saw Blade Speed: 49 – 492 FPM (15 – 150 m/min)
Additional Specifications:
Shortest Material Diameter: Ø 0.2"
Working Height: 29.5"
