This machine is under power and can be inspected. A factory-trained technician can be provided at extra cost for installation & operator training.
| Effective Cutting Length | 20' | 20' |
| Effective Cutting Width | 10' | 10' |
| Table Size | 10'x20' | 10'x20' |
| Table Type | Down Draft | Down Draft |
| Nesting Software | VACAM | VACAM |
| Layout Marking | Yes | Yes |
| Marking Unit | Yes | Yes |
| Power Source | Hypertherm XPR300 Core | Hypertherm XPR300 Core |
| Amps | 300 | 300 |
| Number of Oxy-Fuel Torches | 1 | 1 |
| Max Material Thickness | 8" | 203.2 mm |
| Minimum Material Thickness | 0.125" | 3.175 mm |
| Bevel | Yes | Yes |
| Number of Spindles | 1 | 1 |
| Dust Collector | Donaldson Fume Extraction Unit: DFPre9-12000 | Donaldson Fume Extraction Unit: DFPre9-12000 |
| Machine Hours | 807 | 807 |
| Control | CNC (VACAM Control) | CNC (VACAM Control) |

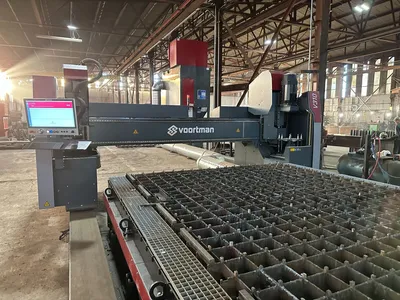

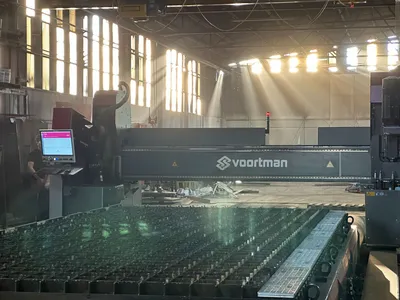

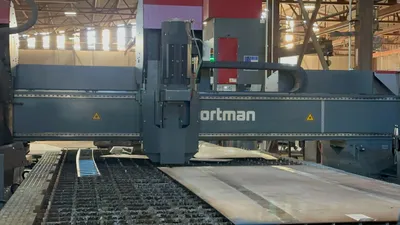

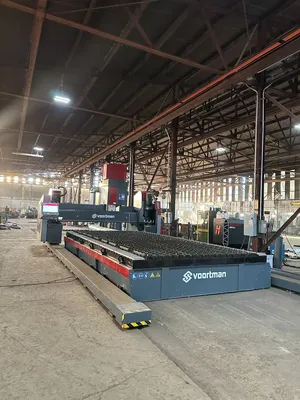

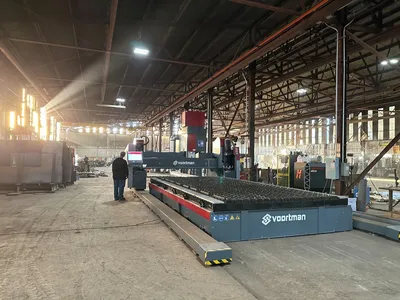

V310 Plate Processing Machine: Includes 1 gantry beam (17-1/8 ft) and side trucks
Plate Processing Capability: Up to 10 ft x 20 ft
X-Rail: 29-1/2 ft on both sides, with double linear guides, helical rack and pinion system, and rubber covering band
Plasma Cutting and Extraction Table: 11-4/5 ft x 20-1/2 ft)
Position 1: VD40 drilling unit (servo-driven, with automatic tool changer for up to 8 different tools)
Driven Suspension: 1 pcs, servo motor driven
Position 2: Plasma cutting unit Hypertherm XPR300 Core (1 pcs, with automatic gas console and cutting parameter database)
Maximum Cutting Thickness (with oxy-fuel attachment): 8 inches
Maximum Drilling Thickness (depending on tool length availability): 8 inches
Plasma 3D Bevel Unit: 1 pcs, with 5 NC-axis, Voortman height control, intelligent torch positioning system, and 3D collision sensor for x-, y-, k-, and v-weld preparations
Donaldson Fume Extraction Unit: DFPre9-12000

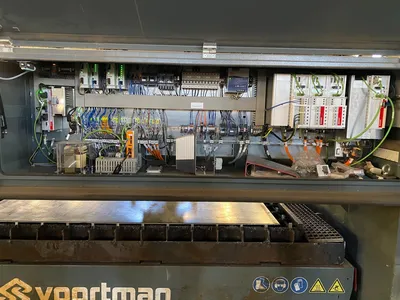

Air Conditioning: For switch panel, suitable for ambient temperatures up to 131°F
Safety Devices: Light curtain and safety bumpers
