OKAMOTO 1632N Surface Grinder, 16"x32" workspace, and advanced features like a Walker Electromagnetic Chuck, Auto Dresser, and Coolant System.
| Table-W | 16" | 406.4 mm |
| Table-L | 32" | 812.8 mm |
| Spindle (Horz/Vert) | Horz | Horz |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 1.5" | 38.1 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| Dimensions | 130" x 85" x 82.5" H | 130" x 85" x 82.5" H |
| Weight | 7,780# | 7,780# |
Specifications:
Maximum Grinding Width x Length: 16" x 32"
Maximum Vertical Clearance For 14" Wheel: 20.6"
Maximum Vertical Clearance for 12" Wheel: 21.6"
Table Load Capacity: 1,550#
Table Working Surface (W x L): 15.7" x 33.5"
Maximum Cross Travel: 17.3"
Maximum Longitudinal Travel: 37.4"
T-Slot (No. x Width): 3 x 0.669"
Grinding Wheel Diameter for 60 Hz: 12"
Grinding Wheel Diameter for 50 Hz: 14"
Grinding Wheel Width: 1-1/2"
Grinding Wheel Bore: 5"
Grinding Wheel Speed (50/60 Hz): 1500/1800 RPM
Grinding Wheel Spindle Motor: 5 HP
Floor Space (L x W x H): 130" x 85" x 82.5"
Weight, Approximate: 7,780#
Incremental Downfeed
16" x 32" Walker Electromagnetic Chuck

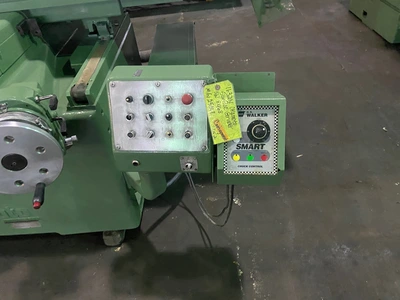

Walker Smart Chuck Controller
Auto Dresser
Multi-Cycle
-Plunge
-Pickfeed
Coolant W/Magnetic Separator
Hydraulic System
