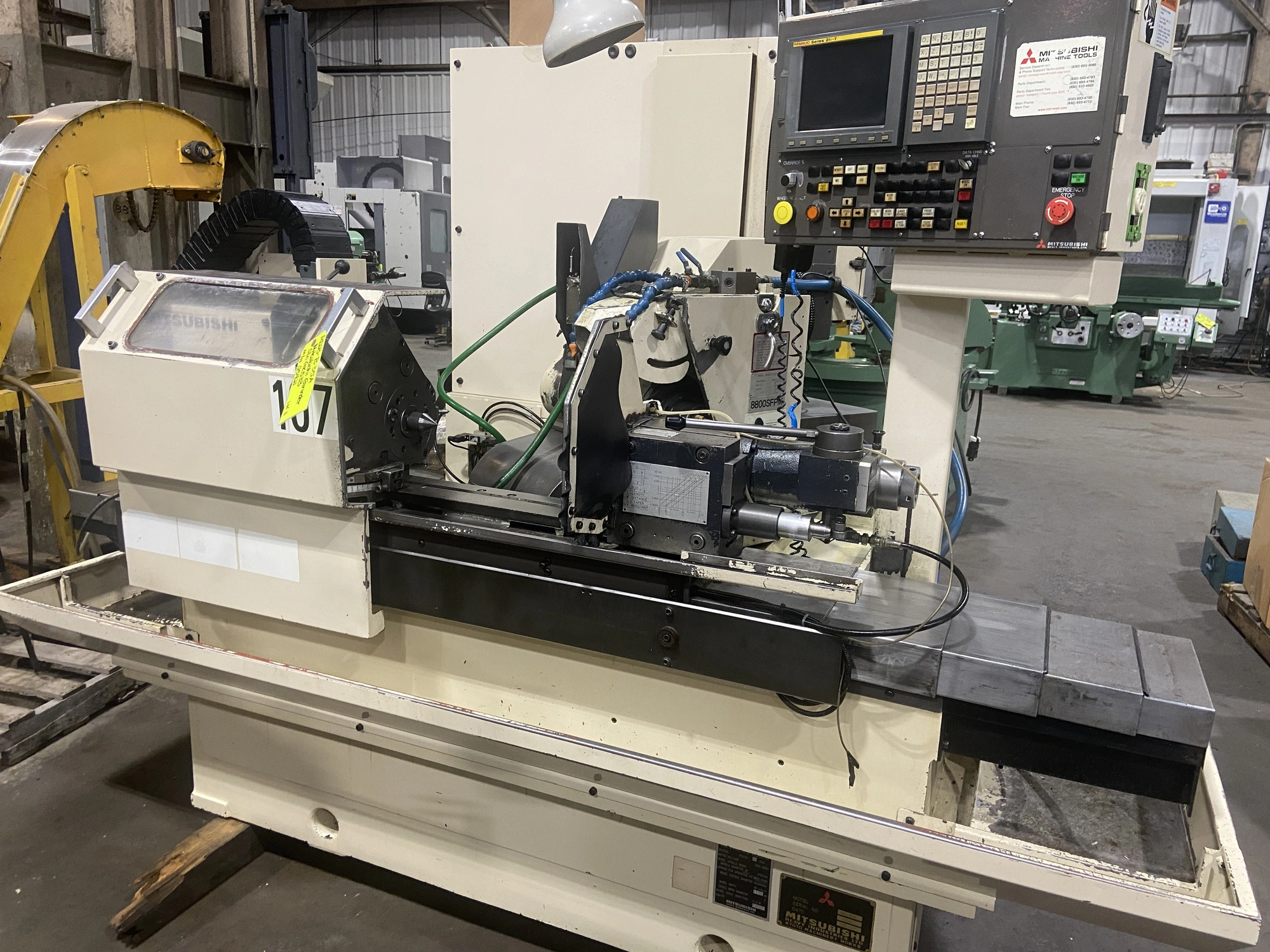

The MITSUBISHI RD23-B35A is a CNC (Computer Numerical Control) angle head grinder. It is a cylindrical grinder capable of both plain and angle head grinding. This machine features simultaneous two-axis control and is equipped with a single-point diamond nib dresser. The model has a swing of 9.1 inches, a center distance of 13.8 inches, and a grinding wheel with an external diameter of 5.9 inches.
Swing | 9.1" | 231.14 mm |
Center Distance | 13.8" | 350.52 mm |
Plain or Angle Head | Angle Head | Angle Head |
Grinding Wheel Dia. | 5.9" | 149.86 mm |
Wheel RPM | 8,000 RPM | 8,000 RPM |
Plunge (Yes/No) | No | No |
Gauging (Yes/No) | No | No |
Dresser (Yes/No) | Yes | Yes |
Control | CNC (FANUC 21IT) | CNC (FANUC 21IT) |
Dimensions | 116.9" x 102.3" x 67.5" | 116.9" x 102.3" x 67.5" |
Weight | 6,600# | 6,600# |
Headstock
Tailstock W/Taper Adjustment
SBS Balancer
Fanuc 21i-T Control
Probe
Work Light
Wheel Mount
Auto Programming
Dresser
220/3/60 Electrics
Coolant System
Splash Guard
Manuals
