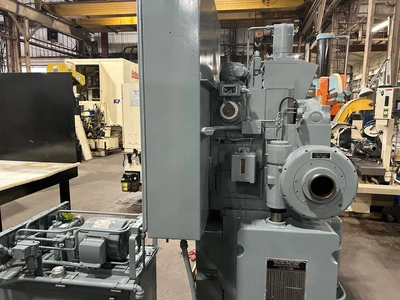

The 16 - 16 Barber Colman Hobbing Machines are suitable for both spur and helical gears
with a maximum diametral pitch of 6. They can be adapted to the milling or hobbing of worms. but
their capabilities are also used extensively in the hobbing of spline shafts. The multi-cycle
feature is also available for the 16- 16.
| Horz/Vert | Horz | Horz |
| Maximum Workpiece Diameter | 16" | 406.4 mm |
| Maximum Diametral Pitch | 6 dp | 6 dp |
| Module | 4 | 4 |
| Axial Travel | 16" | 406.4 mm |
| Maximum Hob Diameter | 5" | 127 mm |
| Hob Arbor Size | 1.25" | 31.75 mm |
| Hob Speed | 425 RPM | 425 RPM |
| Work Spindle Bore | 4.25" | 107.95 mm |
| Control Manufacturer | Conventional | Conventional |
| Weight | 8400 | 8400 |
1.25" Hob Arbor
Hob Shift
4.25" Spindle Bore
Tailstock W/Center

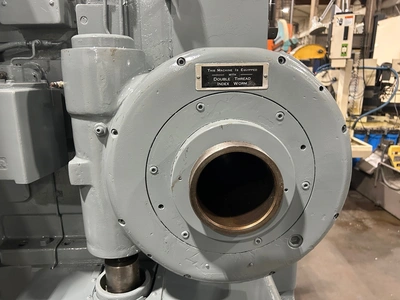

Double Index
Plunge Cycle
Square Cycle
Coolant Pump
Bijur Lube
Hydraulic System
Change Gears
220-3-60 Electrics
