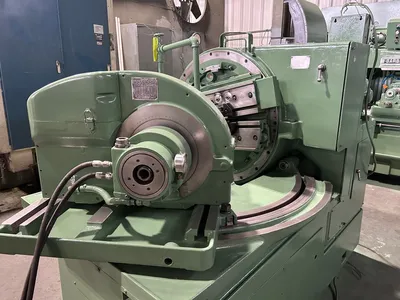

The No. 14 Straight Bevel Coniflex® Generator is an automatic machine for cutting straight bevel Coniflex gears. A wide range of work is covered - gears up to 24" in diameter at 10 to 1 ratio, 3½" face width and 3 diametral pitch. This generator is a two tool machine employing side-cutting tools, which operate alternately on opposite sides of the gear tooth being cut.
The No. 14 Straight Bevel Coniflex Generator offers many advantages: improved quality of product, increased production, ease of setup and operation, and simplified calculations and development.
| Maximum Workpiece Diameter | 24" | 609.6 mm |
| Maximum Face Width | 3.5" | 88.9 mm |
| Diametral Pitch | 3 | 3 |
| Maximum Cone Distance | 12" | 304.8 mm |
| Extreme Ratio | 101 | 101 |
| Number of Teeth | 0 | 0 |
| Control Manufacturer | Conventional | Conventional |
| Dimensions | 76" x 56" | 76" x 56" |
| Weight | 14,800# | 14,800# |

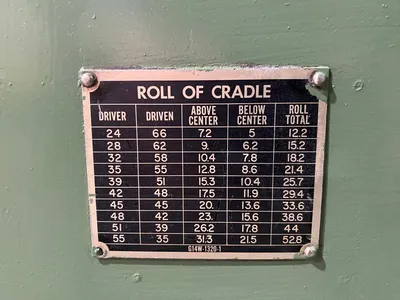

Specifications:
Gear Diameter: up to 24"
Cone Distance (Maximum): 12"
Cone Distance (Minimum): 0
Extreme Ratio: 10:1
Diametral Pitch (coarsest): 3 DP
Index Range: 5 to 100 inclusive and most numbers up to 200
Diameter of Taper Hole at Large End: 3 29/32"
Taper per Foot: 39/64"
Depth of Taper: 6"
Diameter of Hole Through: 3 1/16"
Spindle Nose to Machine Center: 2 1/2" x 15"
Cutter Speeds (Strokes per Minute): 64 to 495
Feeds (Seconds per Tooth): 10 to 131
Main Motor: 3 H.P., 1800 RPM
Floor Space: 76"x56"
Net Weight: 14,800 lbs.
Coniflex
Gauges
Change Gear Cabinet
Hydraulic Work Clamping
Stock Divider
Cutter Block
Rough/Finish Feed Cam
Draw Bar
Chip Basket
Hydraulic System
Coolant Pump
