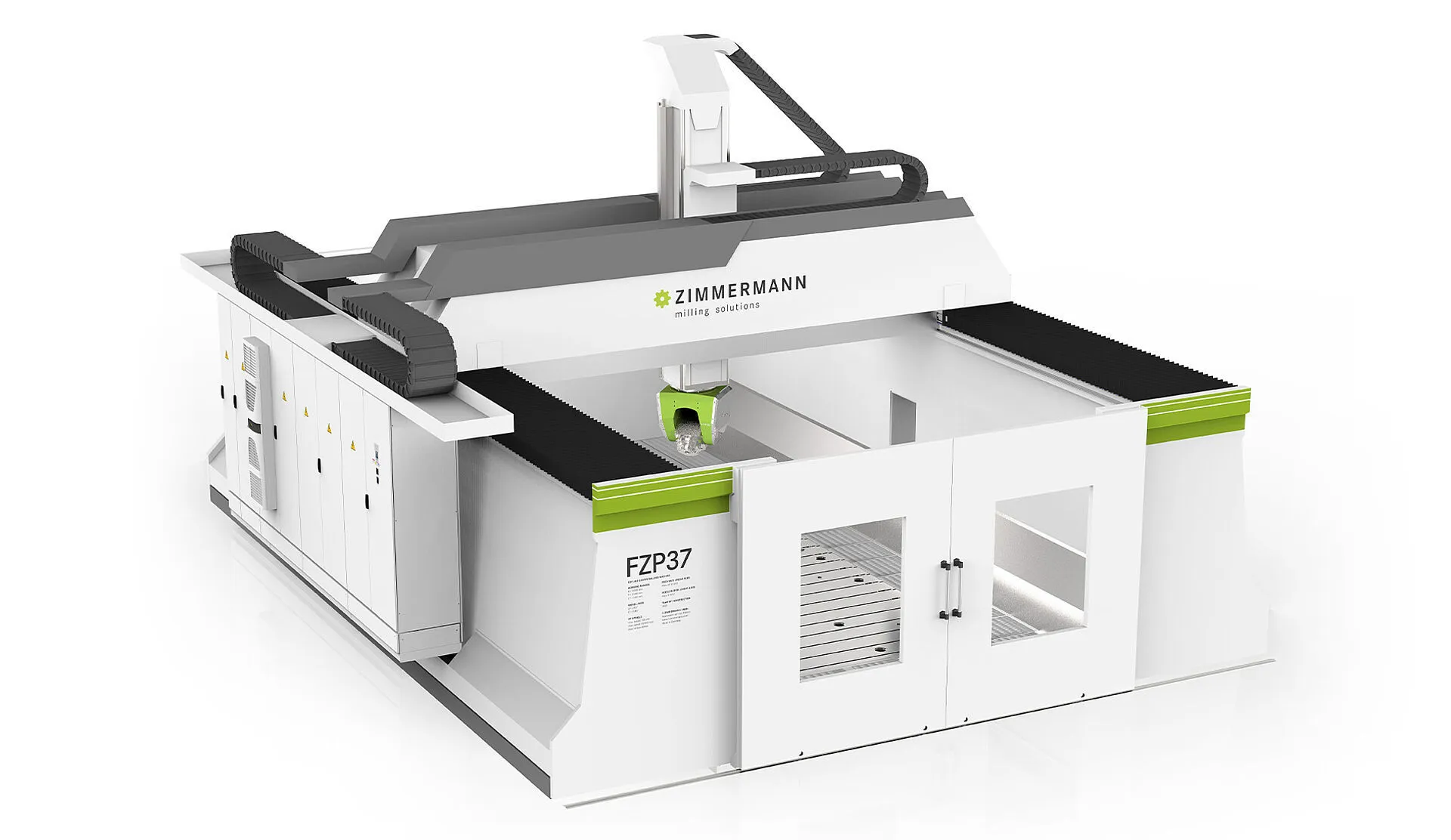

NEW ZIMMERMANN FZP37

Overview
Description

The FZP37 gantry milling machine has a modular design which allows different operating ranges and the use of different makes of CNC controls. The gantry construction makes it possible to machine components of all kinds. The machine table is firmly anchored to the machine base providing a stable cutting surface for material. The milling process is highly precise, regardless of weight and size.
The structurally rigid center lead portal, the cross- and Z-slides and the dynamic milling heads facilitate a consistent, efficient milling process. Thanks to their combination of high thermo-stability and rigidity the machines are able to meet all the requirements of model making, tool and mold construction, including the demands of the aerospace and automotive industries. The versatile 5/6-axis FZP37 is also suitable for machining of workpieces in shipbuilding and the alternative energy industry.

Specifications
X40,000"1,015,999 mm
Y6,000"152,400 mm
Z3,000"76,200 mm
Table-L40,000"1,015,999 mm
Table-W6,000"152,400 mm

Working Ranges
X-axis 3,000 - 40,000 mm
Y-axis 2,500 - 6,000 mm
Z-axis 1,250 - 3,000 mm

Table Size
Length 3,000 - 40,000 mm
Width 2,500 - 6,000 mm
Heigth 250 mm
Table Load max. 5,000 kg/m2
T-Slots (longitudinal) 18H12
         optional 18H8
Pitch of T-Slots 250 mm
Drives - Linear Axes
Feed Rate      X-, Y-, Z-axis up to 60 m/min
Acceleration      X-, Y-, Z-axis max. 3 - 5 m/s2

Dimensions, Weight
Required Space
(without peripherals)
Length 5,600 – 44,600 mm
               Width 7,100 – 10,700 mm
               Height 5,450 – 8,450 mm

Accuracy
Standard Accuracy    in accordance to VDI/DGQ 3441 or ISO 230-2
Special Accuracy     on request
