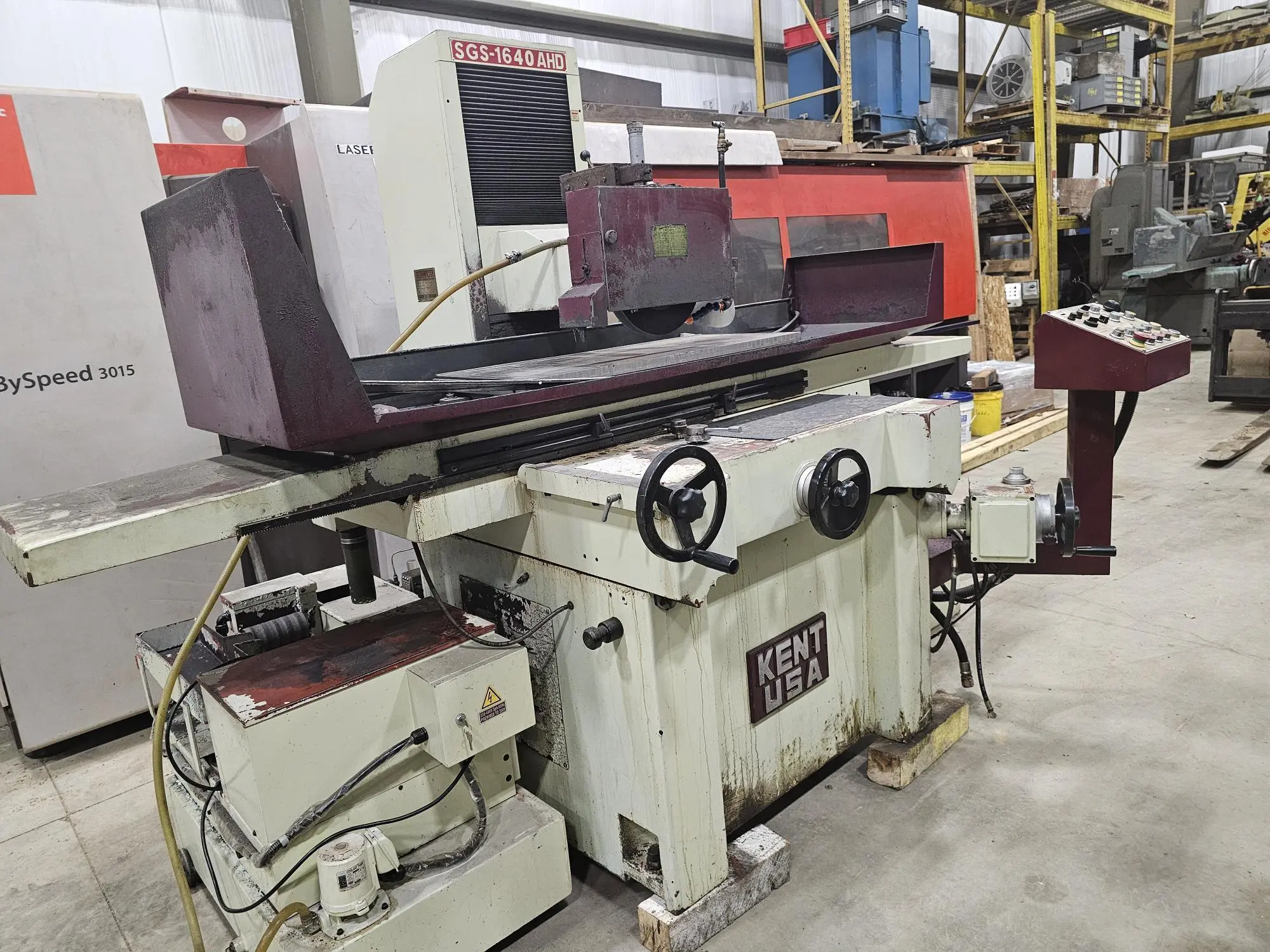

Has 16"x40" electro-mag chuck, dust/coolant system, auto lube, & more. 14x2" Grinding wheel. 7.5HP
| Table-W | 15.7" | 398.78 mm |
| Table-L | 39.3" | 998.22 mm |
| Spindle (Horz/Vert) | Horz | Horz |
| Power | 7.5 hp | 5.6 kW |
| Grinding Wheel Width | 2" | 50.8 mm |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Weight | 7500 Lbs | 7500 Lbs |
16" x 40" Electro-magnetic chuck with built-in controls
Combination dust-suction/coolant system
Grinding wheel and wheel mount
Automatic lubrication system
Wheel balancing base and arbor
Overhead parallel dresser
Worklight
