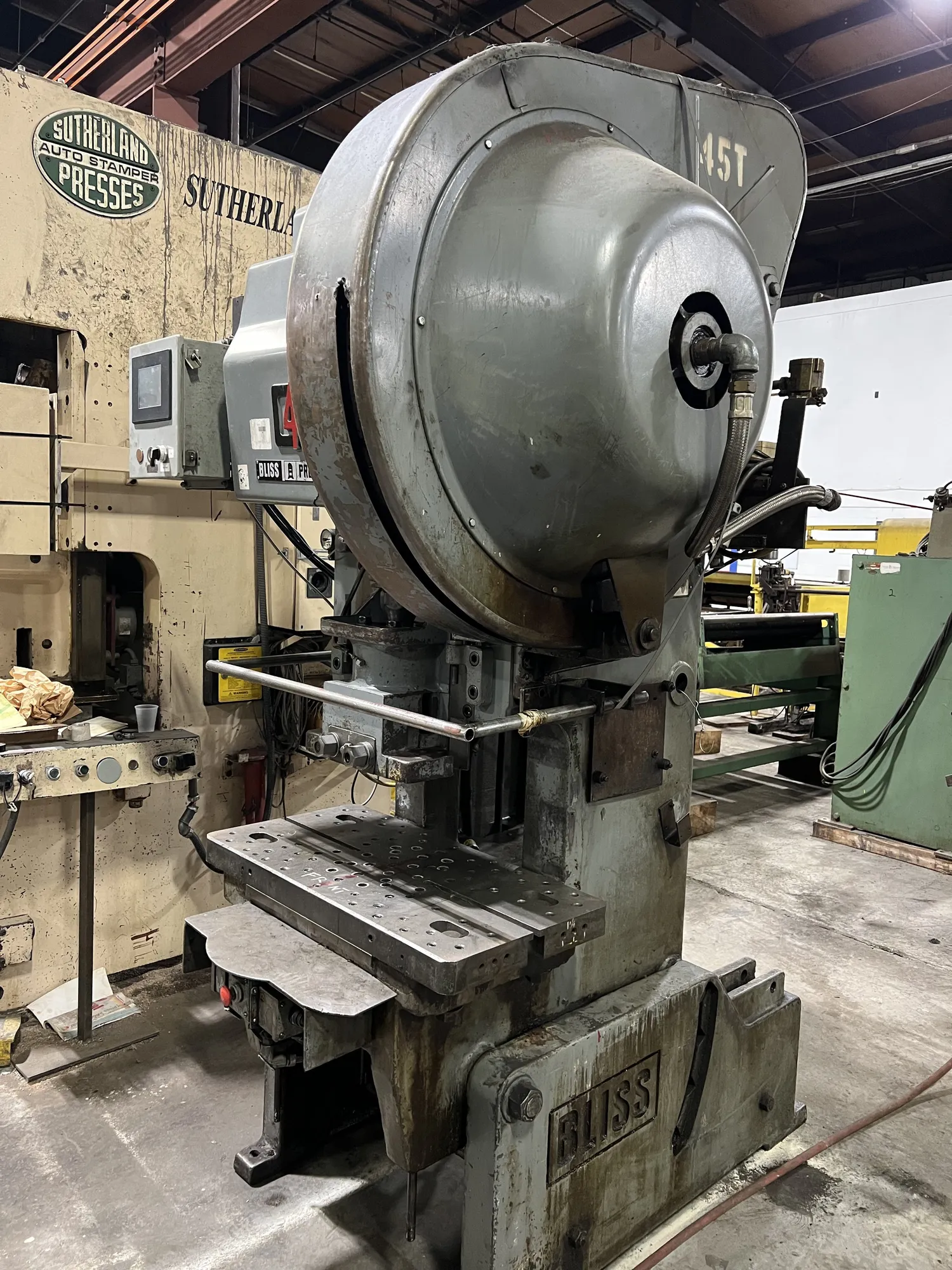

BLISS 45 TON OBI PRESS
SERIAL H61120
NEW 1968
MODEL C45
CAPACITY 45 TONS
STROKE 4"
ADJUSTMENT 3"
SHUT HEIGHT 12.25"
SPEED 110 SPM
BED AREA 29.5" X 18"
BOLSTER THICKNESS 2.5"
RAM AREA 15.5" X 10.5"
BED HEIGHT 33"
APPROX WEIGHT 8,000 LBS
OAD 71” X 57” X 104”T
EQ WITH:
AIR CLUTCH AND BRAKE
V/S DRIVE
| Tonnage | 45 T | 40.823 t |
