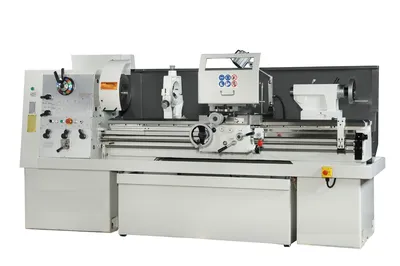

The BEMATO BMT-2040MA CNC Manual Lathe is engineered for precision and performance, offering high-speed machining capabilities in a robust and durable design. Its universal gearbox, high-torque spindle motor, and extensive threading options make it an indispensable tool for workshops and production lines. Whether you’re handling aluminum alloys, carbon steel, or other materials, this lathe is built to deliver exceptional results.
With advanced features like variable-speed options, induction-hardened bedways, and a user-friendly design, the BMT-2040MA ensures accuracy and efficiency for every operation. It is available in various configurations to suit your specific machining needs, making it ideal for automotive, aerospace, and general manufacturing applications.
Key Features:
• High-Speed Spindle: 16-step speeds ranging from 20–1600 RPM.
• Customizable Lengths: Distance between centers ranging from 950 mm to 2240 mm.
• Universal Gearbox: Supports metric, imperial, M.P., and D.P. threading.
• Induction-Hardened Bedways: Ensures durability and long-lasting precision.
• Precision Headstock Gears: Hardened and ground for smooth, accurate operations.
| Swing Over Bed | 20.079" | 510 mm |
| Swing Over Cros Slide | 13.386" | 340 mm |
| Swing in Gap | 29.921" | 760 mm |
| Distance Between Centers | 37.402" | 950 mm |
| Gap width from Faceplate | 8.6614" | 220 mm |
| Spindle Bore | 3.1496" | 80 mm |
| Spindle Nose | D1-8 | D1-8 |
| Spindle Speed | 1,600 RPM | 1,600 RPM |
| Quill Stroke | 7.0866" | 180 mm |
| Quill Diameter | 2.9528" | 75 mm |
| Quill Taper | MT#5 | MT#5 |
| Bed Width | 13.583" | 345 mm |
GAP BED
MOTOR & ELECTRIC CONTROL SYSTEM
COOLANT SYSTEM
BACKPLATE FOR 3-JAW CHUCK
4-WAY TOOLPOST
THREADS INDICATOR
SOFT START BY INVERTER DRIVING
CENTERS & CENTER SLEEVE
LEVELING BLOCK
SERVICE TOOLS & TOOLBOX
INSTRUCTION & PARTS MANUAL
ROLLER TYPE STEADY REST (25-135mm) INCLUDED
ROLLER TYPE LARGER STEADY REST (85-190mm CAPACITY)
FULL LENGTH SPLASH GUARD 40" MODEL
RAPID FEED ATTACHMENT FOR Z-AXIS MOVEMENT
DOUBLE SPEED TAILSTOCK
MAGNETIC BRAKE SYSTEM & WITH FOOT BRAKE
FAGOR BRAND 2 AXES D.R.O FOR BMT 2040MA
CSA APPROVED ELECTRICAL COMPONENTS
DUAL DIALS (CROSS & TOP SLIDE)
