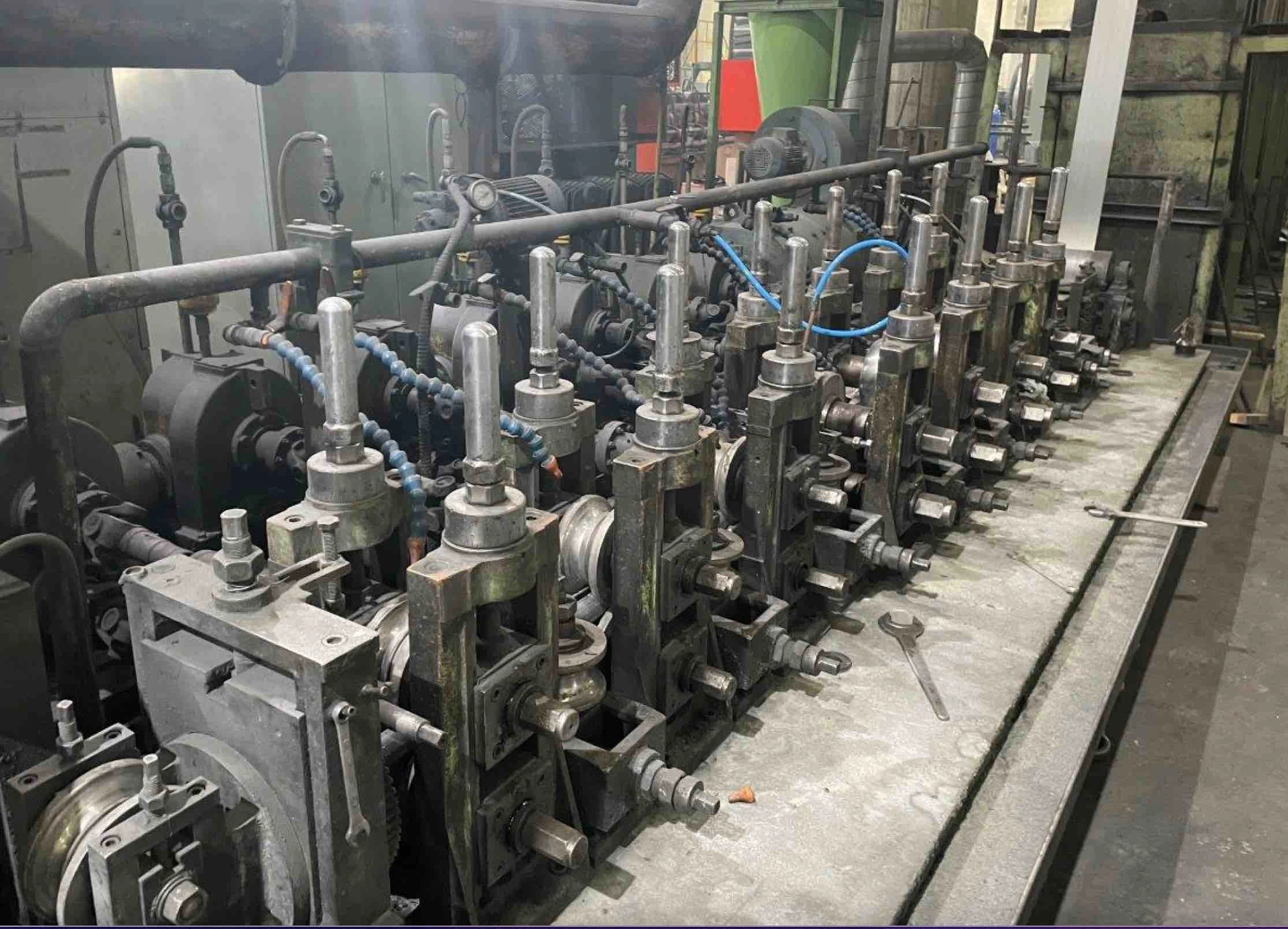

USED 2003 Korea Industries 63mm x 3mm ERW Tube Mill

Overview
Manufacturer:
Korea Industries
Year:
2003
Stock #:
19692
Status:
For Sale
Specifications

Make: Korea Ind.
Year New: 2003
Tube Diameter: 15.9mm - 63.5mm
Wall Thickness: 0.5mm - 3mm
Tube Length: 4 - 14 meters
Line Speed: 20 - 120 meters per minute

Double End Mandrel Uncoiler
Coil Width: 190mm
Coil OD: 1800mm
Coil ID: 505mm
Coil Weight: 2.5 ton

Entry Crop Shear & CO2 Welder

Floop Type Accumulator
Feeding Speed: 200 mpm
Dimensions: 1500mm (W) x 6500mm (W) x 4,000mm (H)

Entry Pinch Rolls
Entry Coil Straightener

Forming Mill
Shaft Diameter: 60mm
Seven (7) Forming Stands
Six (6) Side Stands
Universal Drive
Individual Gear Boxes
Two (2) 75HP DC Motor Drive

Welding Section
High Frequency 300Kw Welder
Power Supply: 700KVA
Mechanical Adjustable Squeeze Box
Powered Bead Rewinder
Extended Cooling Section

Sizing Mill
Shaft Diameter: 60mm
Four (4) Sizing Stands
Four (4) Side Stands
Measuring Roll Stand
Straightening Roll Stand
Adjustable Turk Heads
Universal Drive
Two (2) 75Kw DC Motors

Cut - Off Section
Type: Cold Flying Saw
Power: 15Kw DC Motor
Cutting Length: 5m - 10m
Driven Run Out Table
Table Length: 13 meters

Electrics, Hydraulics, Controls, Cooling System, Lots of Tooling
