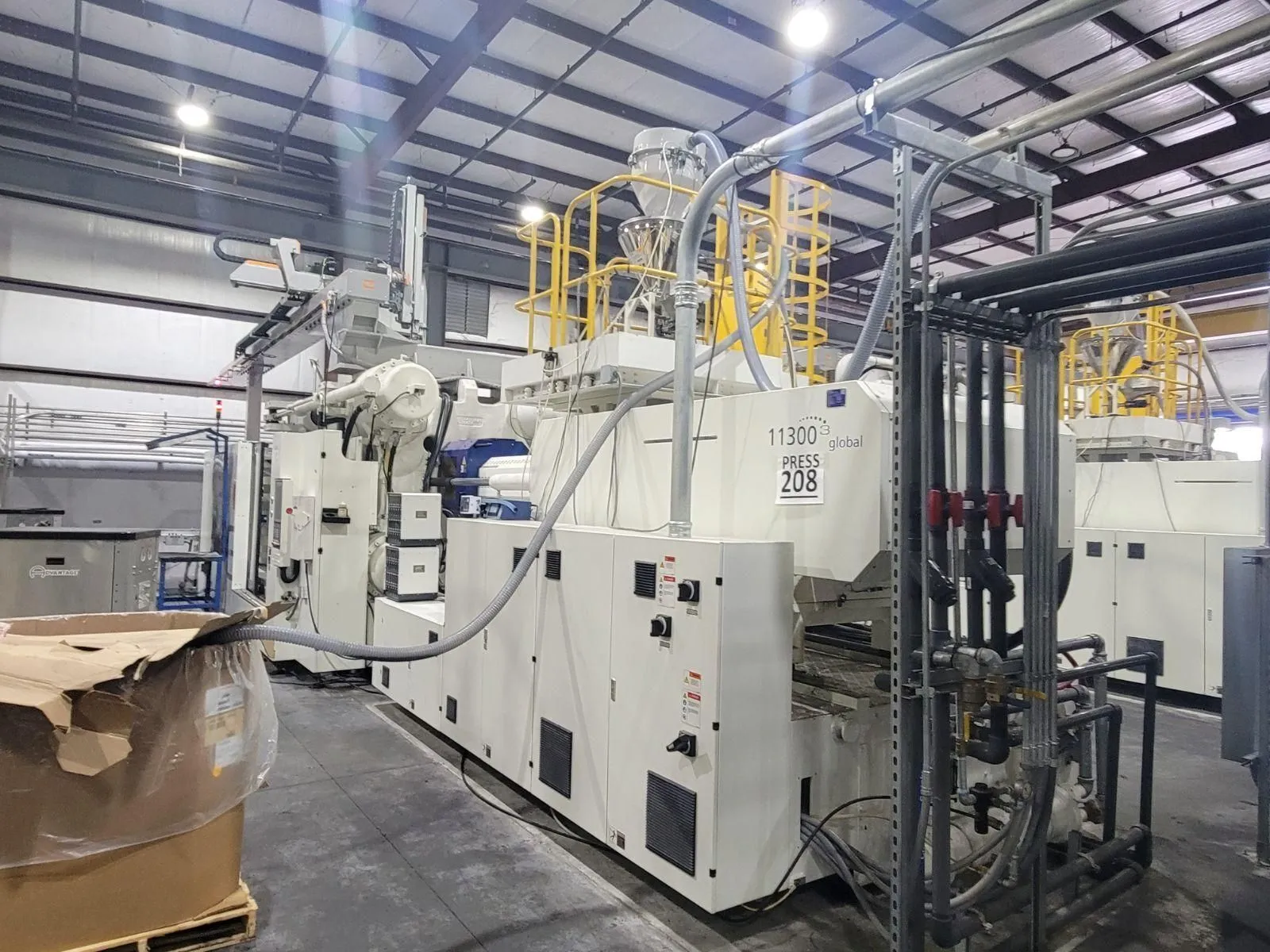

| Type | Servo Hydraulic | Servo Hydraulic |
| Clamping Force Tonnage | 1,500 T | 1,360.779 t |
| Barrel Code | B | B |
| Shot Volume (PS) | 199.7 oz | 5,661.1 g |
| Screw Diameter | 4.72" | 119.89 mm |
| Screw Speed STD | 105 rpm | 105 RPM |
| Injection Rate STD | 2.3 ft³/min. | 0.1 m³/min. |
| Tie Bar Distance H | 57.48" | 1,460 mm |
| Tie Bar Distance V | 53.54" | 1,359.9 mm |
| Maximum Daylight | 120" | 3,048 mm |
| Mold Height Min | 27.56" | 700.02 mm |
| Mold Height Max | 57.09" | 1,450.1 mm |
| Ejector Force | 37 T | 33.566 t |
| Ejector Stroke | 15.7" | 398.78 mm |
| Injection Orientation | Horz | Horz |
| Hours | 7,628 hr. | 7,628 hr. |
| Dimensions | 38.FT X11.8 FT X 14.5 FT | 38.FT X11.8 FT X 14.5 FT |
| Weight | 136000 LBS | 136000 LBS |
2 COREPULL
3 V GATES
ARI ROBOT
3 PC ASSY SCREW TIp
