American Built, Fully Functional, Tooled
| Swing | 15" | 381 mm |
| Centers | 54" | 1,371.6 mm |
| Spindle Bore | 1.75" | 44.45 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 0 RPM | 0 RPM |
| Swing Over Cross Slide | 10" | 254 mm |
15” x 54” Cincinnati Geared Head Engine lathe, Model 15 Tray Top, S/N 1W3E5H- 72

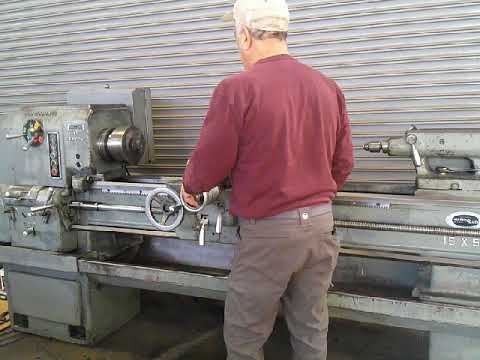

To View under Power Follow the Link Below
https://youtu.be/6p6iDy1tBKg
Machine description:
Swing over ways 10”
Swing over Cross Slide 12”
Center Distance 54”
Spindle Bore 1-3/4”
Spindle HP 5 220/440 Volt Wired 440
Spindle Speeds (12) 25 - 980 RPM
Spindle Mount L-1
Feeds .0019 - .1215 IPR
Threads 1-1/2 – 48 TPI
Tail Stock Taper 4 MT
Tail Stock travel 6”
Weight 3750 LBS
8’ 3 Jaw Cushman Chuck
10” Cushman 4 Jaw Chuck
Steady Rest
American Tool Post with Holders
Carriage stop
Thread Dial
Drill Chuck
Drive Plate
Spindle Wrench
Inspect Under power in our Lebanon NJ warehouse
Price: $3950.00
