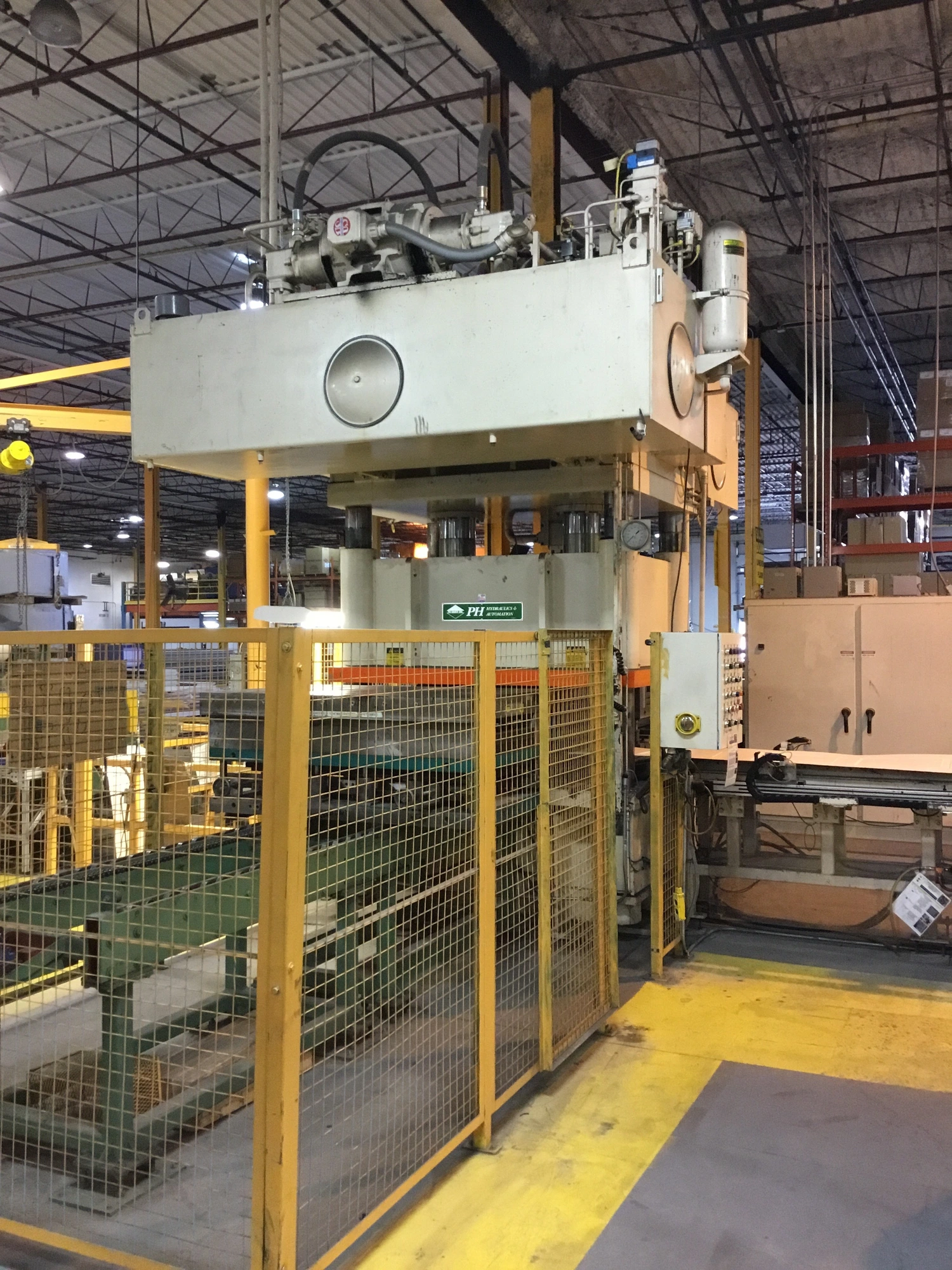

(1) Used 400 Ton PH Model HD2-4P Four Post Hydraulic Press
| Ton | 400 T | |
| Bed L-R | 81 in | |
| Bed F-B | 60 in | |
| Stroke | 12 in | |
| Daylight Opening | 33 in | |
| Windows | 40 in |
Serial Number: 53018
Capacity: 400 Ton
Stroke: 12”
Daylight Open: 33”
Shut Height: 21”
Bed Area: 81”LR x 60”FB
Distance Between Posts: 64”LR x 40”FB
Operating Speeds:
Rapid Advance: 340 IPM
Intermediate: 180 IPM
Pressing: 48 IPM
Rapid Return: 352 IPM
2-Point Suspension, Self Contained Single Action Down Acting
St. Lawrence Hydraulics & Electrical Control System
Platen Latches - Upper Platen equipped with automatically operated Spring
engaged, Hydraulic Disengaged latches to Mechanically Hold Platen at any
position of the work stroke
Latches are interlocked Electrically
Self Contained Press Mounted Hydraulics (Top Mounted)
800 Gallon Capacity / 2- 400 Gallon
125 HP O.D.P. / 1200 RPM / 230-460 Volt
Vickers Fixed Vane Pumps #4525V38A5 / 38 GPM
O.A. Dimensions: 70”LR x 89”FB x 170”H
Approximate Weight: 63,000 Lbs
Floor Standing (no pit required)
