| Ton | 20 T | |
| Bed L-R | 32 in | |
| Bed F-B | 18 in | |
| Stroke | 12 in | |
| Daylight Opening | 25 in |

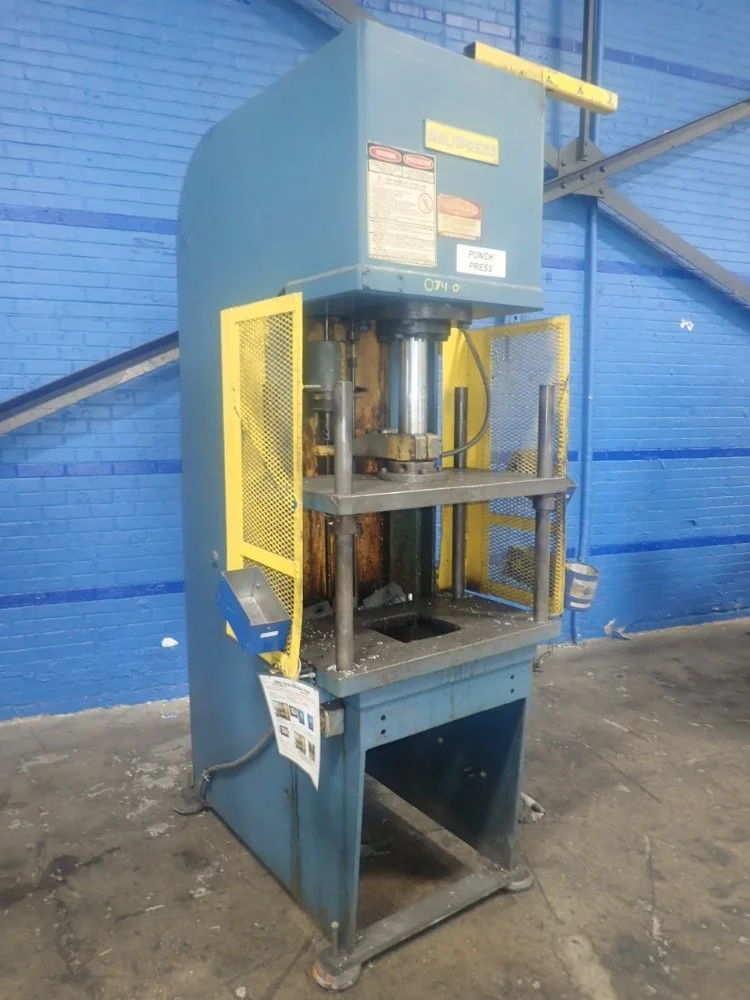

Hydraulic Press
4 Post Guided Ram
20 Ton
32” x 18” Bolster size
30” x 16” Post space
12” Stroke
25” Daylight
20 HP
Ram Speeds IPM @ 1800 RPM 60Hz
Closing: 550
Pressing: 250
Return 600
Bore IN: 4-1/2
Ram IN: 3-1/4
MAX PSI: 2516
Reservoir Capacity GAL: 55
Weight: 3,200 LBS
