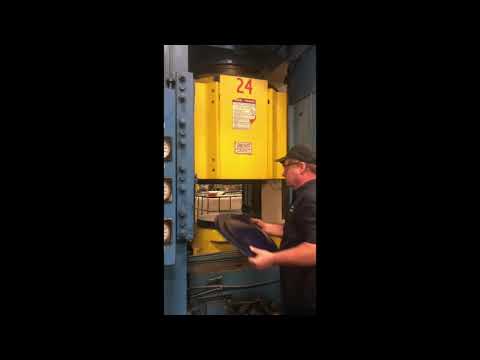

(1) Used 2750 Ton Cincinnati Hydroform Press
| Ton | 2750 T | |
| Bed L-R | 25 in | |
| Stroke | 16 in | |
| Daylight Opening | 29.75 in | |
| Speed | 1000 ipm | |
| Windows | 29 in |
Max Tonnage: 2750
Max Stroke: 16”
Rapid Advance: 1000 IPM
Rapid Return: 1000 IPM
Max Stripping Capacity: 35 Tons
Daylight: 29.75” (Stroke Up Tool Nest Removed)
Max Pressing Speed: 55 IPM (0 - 1100 tons)
Max Pressing Speed: 21 IPM (1100 - 2750 tons)
130 GPM
Max Blank Diameter: 25”
Max Draw Depth: 12”
Max Forming Pressure: 10,000 PSI
Max Blank Thickness: 3/8” Steel
EQUIPPED WITH:
Dual Station Shuttle Table
Approx Overall Dimensions @ floor: 155.5” LR x 100” FB
Approx Overall Dimensions @ top: 172.5” LR x 107.5” FB
Overall Height Above Floor: 188.25”
Pit Depth: 81.5”
Approx Overall Weight: 190,000#
IN PLANT UNDER POWER
