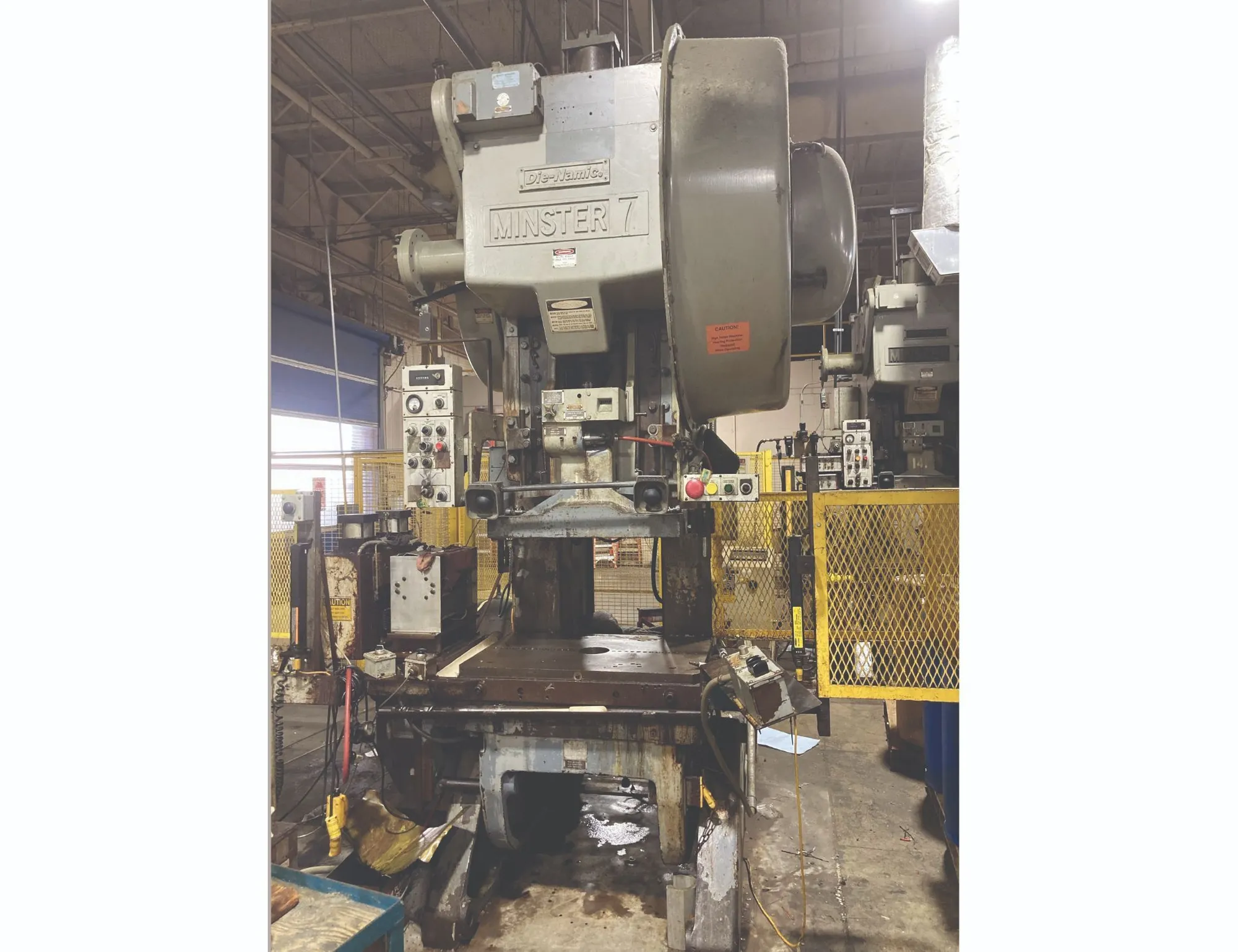

(1) Used 75 Ton Minster #7 Die-Namic OBI Geared Press
| Ton | 75 T | |
| Bed L-R | 36 in | |
| Bed F-B | 24 in | |
| Stroke | 4 in | |
| Adjustment | 3.75 in | |
| Shut Height | 21 in | |
| Speed (max) | 90 strokes/min. | 90 strokes/min. |
| Speed (min) | 45 strokes/min. | 45 strokes/min. |
| OBI Single Double | Single Crank | Single Crank |
| Cushions | no | no |
| Air Clutch (Yes/No) | Yes | Yes |
Serial#101-7D-21375
Capacity: 75 Ton
Stroke: 4”
Adjustment: 3.75 (powered)
Shut Height: 21” SDAU over bed
Bed Area: 36” lr x 24” fb
(2) Bolster Plates:
Bottom Bolster 46"lr x 24"fb x 3", Solid
Top Bolster: 36"lr x 24"fb x 1 1/2", Drilled & Tapped
Ram Area: 30” lr x 17” fb
Speed: 45 - 90 SPM
Equipped With:
Air Clutch and Brake
Air Counter Balance
Dual Palm Buttons
Approx Dimensions: 72” lr x 96” fb x 12’ high
Approx Weight: 18,000#
