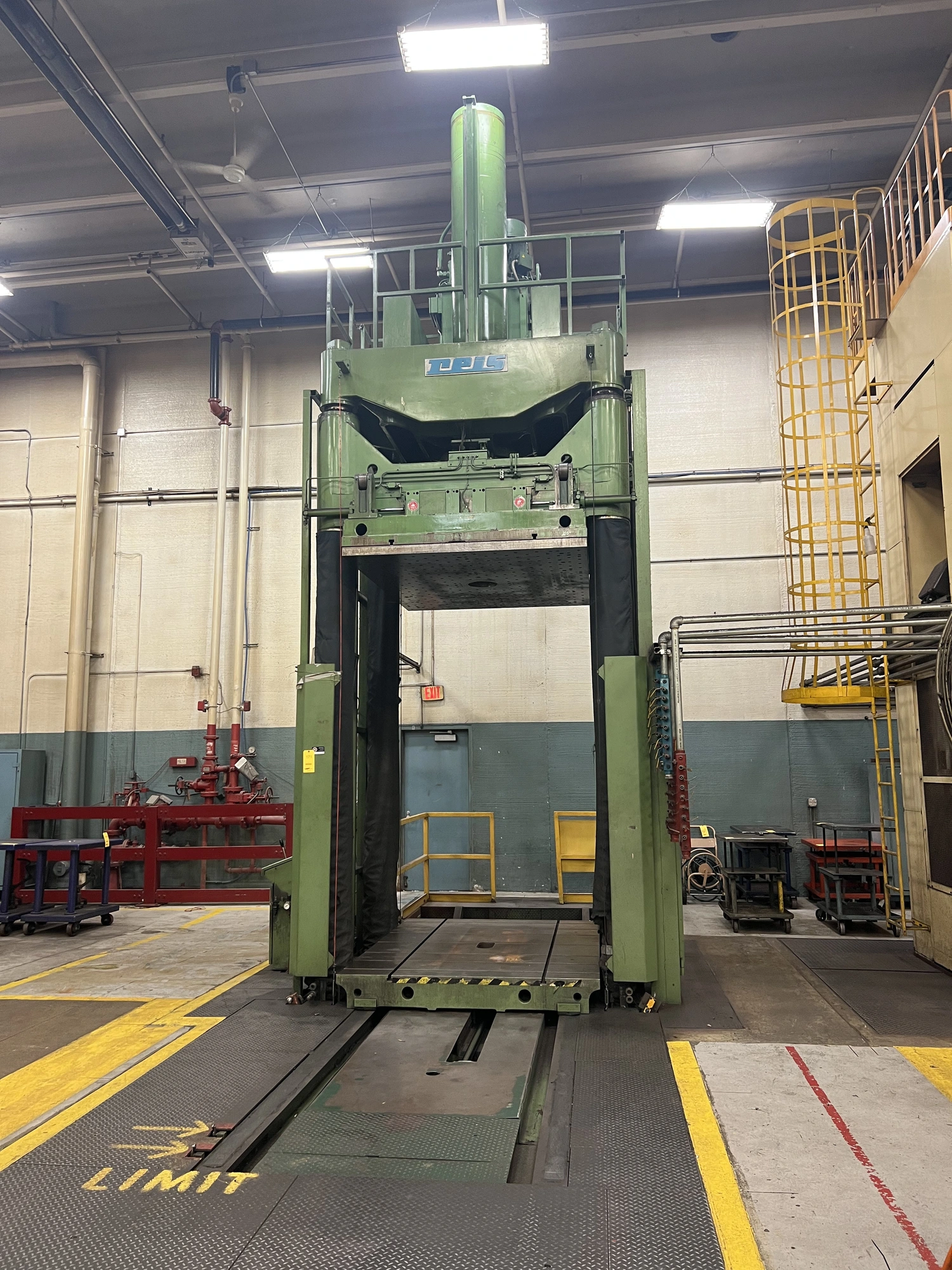

(1) Used 224 Ton Reis Hydraulic 4 Post Spotting Press
| Ton | 224 T | |
| Bed L-R | 71 in | |
| Bed F-B | 98 in | |
| Stroke | 106 in |
Serial#04.023.00
Capacity: 224 Ton
Table Size: 71" lr x 98" fb
Swivel Platen Size: 71’ lr x 98” fb
Stroke: 106”
Dayllight Opening: 118”
Distance Between Columns: 74” lr
Table Capacity: 67,442 pound force
Swivel Platen Capacity; 26,977 pound force
Oil Reservoir Capacity: 153 Gallons
Motor: 25.3 Kw (approx 33 HP) 41 amps / 1755 rpm
Power: 480 v/3ph/60cy
Press can be installed floor standing
Approx Floor Space required: 324” lr x 135” fb
Approx Overall Height: 317.91”
Currently Installed:
Above Floor: 291.61”
Pit Depth: 26.3”
Approx Overall Weight: 103,617#
EQUIPPED WITH:
Press Controls Console
Top Mounted Hydraulics
Roll Out Bolster (Table)
Tilt Down Ram (180º)
Specifications Subject to Verification
