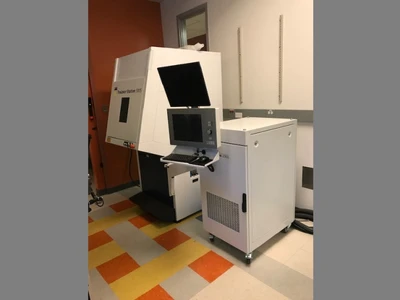

Trumpf TruLaser Station 5005
TruMicro 2030 Laser Marker/Ablation System
Originally cost $279,000
See original quotation attached.
| Wattage | 1000 w | 1,000 W |
| Dimensions | 449" x 252" x 108" | 449" x 252" x 108" |
| Weight | 33730 lbs | 33730 lbs |
Trumpf TruLaser Station 5005
TruMicro 2030 Laser Marker/Ablation System
Mfd. 2017
Never used!
Equip No. S2121M0136
Working range
X axis: 300 mm
Y axis: 300 mm
Z axis: 500 mm
B axis (optional): ± 120 °
C axis (optional): n x 360 °
Max. speed
X axis: 6 m/min
Y axis: 6 m/min
Z axis: 6 m/min
B axis: 15 1/min
C axis: 150 1/min
Positioning accuracy < 0.1 mm
Repeatability < 0.03 mm
Footprint
Width: 800 mm
Depth: 900 mm
Height: 2000 mm
TRUMPF Laser
Max. laser power: 1000 W
Available lasers: TruPulse, TruFiber, TruDisk, TruDiode, TruMicro
