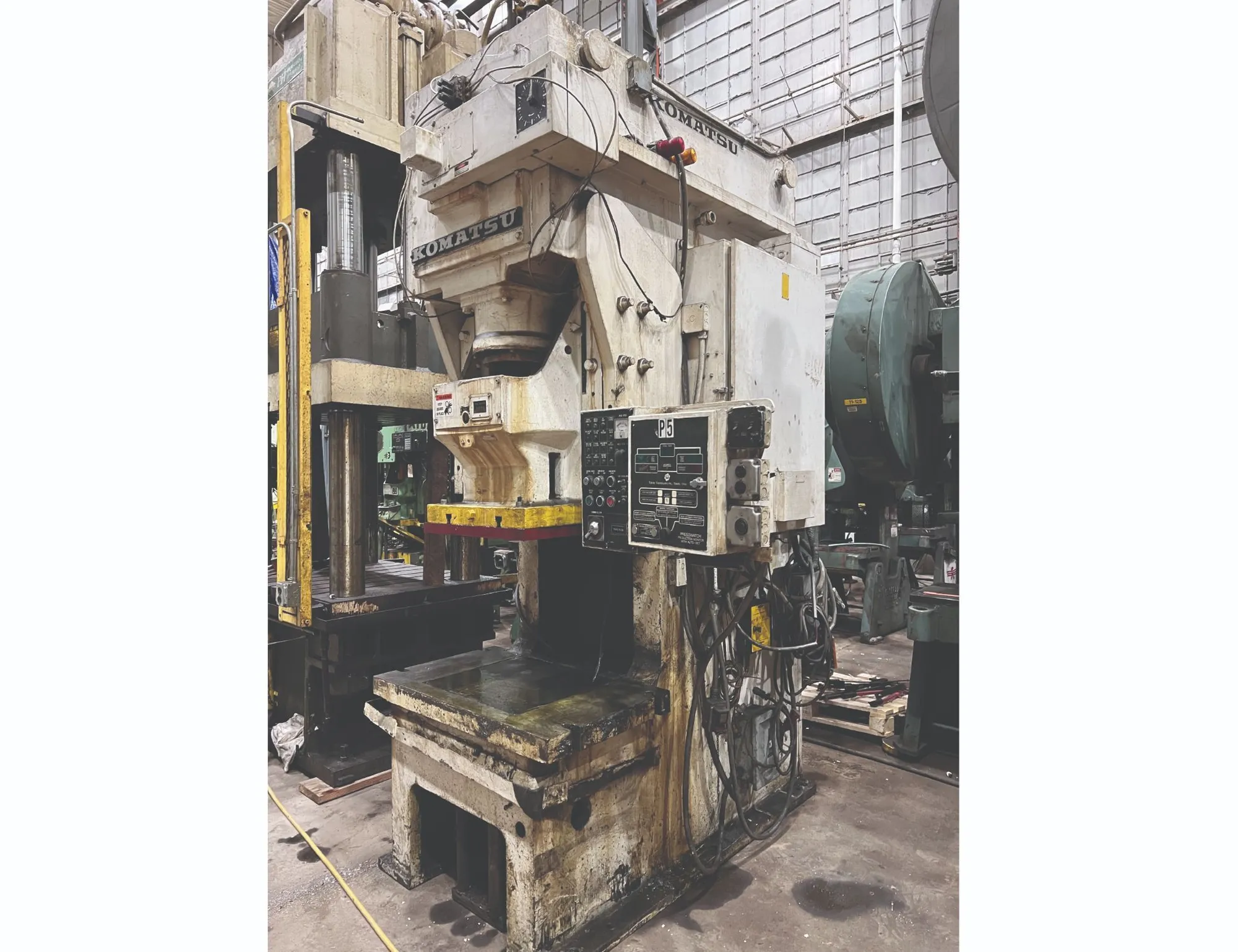

121 Ton Komatsu OBS Single Point Gap Press
| Ton | 121 T | |
| Bed L-R | 33.1 in | |
| Bed F-B | 27.5 in | |
| Stroke | 5.91 in | |
| Adjustment | 3.9 in | |
| Shut Height | 14.9 in | |
| Speed (max) | 32 strokes/min. | 32 strokes/min. |
| Speed (min) | 65 strokes/min. | 65 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
Capacity: 121.25 Short Ton
Stroke: 5.91"
Die Height: 14.96" Bolster to Slide (SDAU)
Slide Adjustment: 3.9"
Speed: 32-65 SPM
Bed Area: 33.1"L-R x 27.5"F-B
Slide Area: 23.6"L-R x 17.7"F-B
