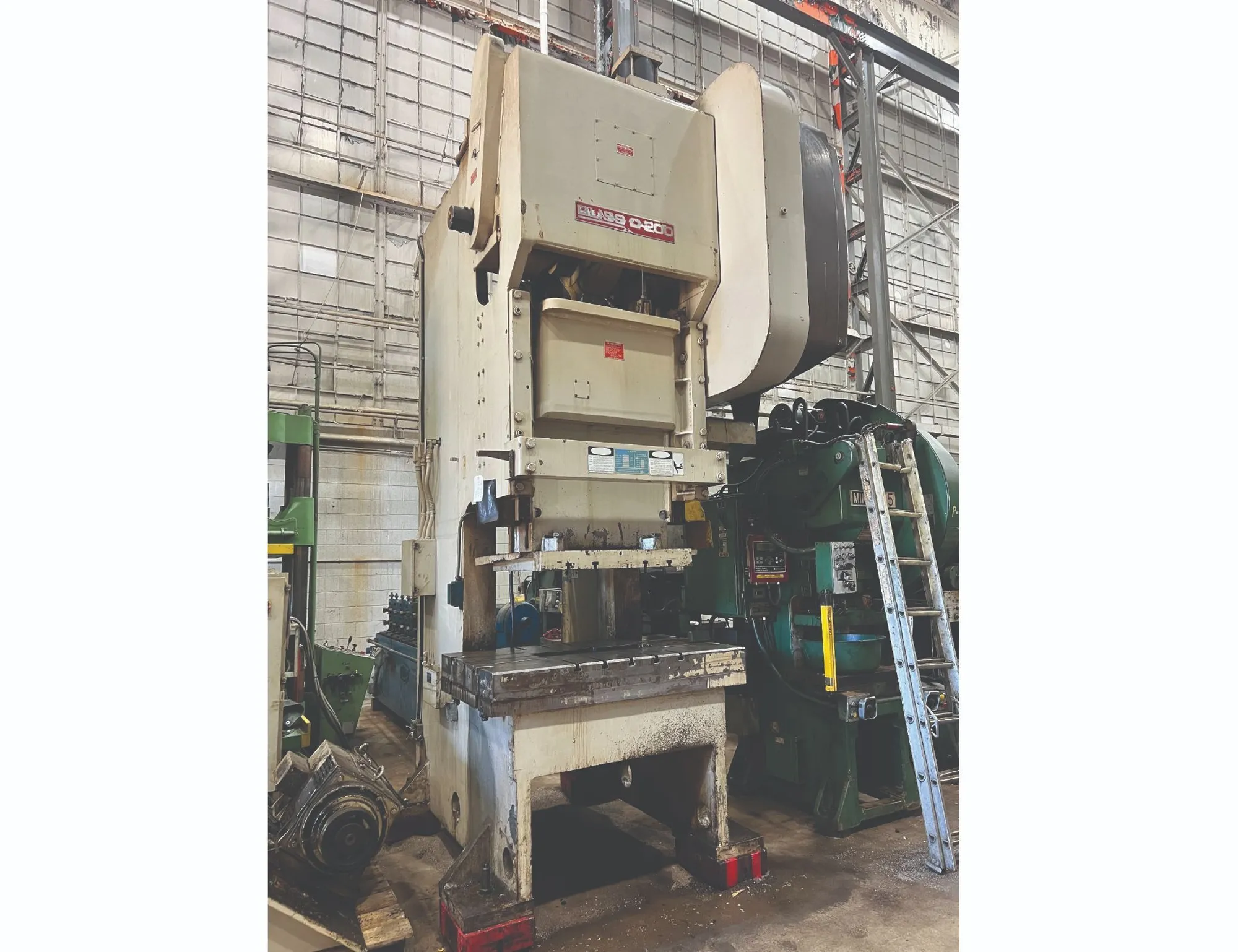

(1) Used 200 Ton Bliss Model C-200 Single Point Gap Frame Press
Ton | 200 T | |
Bed L-R | 58 in | |
Bed F-B | 34 in | |
Stroke | 8 in | |
Adjustment | 4.5 in | |
Shut Height | 24 in | |
Speed (max) | 60 strokes/min. | 60 strokes/min. |
Speed (min) | 30 strokes/min. | 30 strokes/min. |
Cushions | No | No |
Air Clutch (Yes/No) | Yes | Yes |
Capacity: 200 Ton
Bed Area: 58" lr x 34" fb
Ram Area: 36" lr x 28" fb (T-slotted)
Bolster: 58" lr x 34" fb x 5" thick (T-slotted)
Stroke: 8"
Slide Adj: 4.5" (Powered)
Shut Height to Bed: 24" (Slide Down Adjustment Up over bed)
Speed: 30 - 60 SPM (Variable)
Distance Between Uprights thru back: 31.75"
Air Clutch & Brake
Wintriss Smartpac Free Standing Control
Single, Inch and Continuous
Dual Palm Buttons
Vibro Mounts
System 1100 Tonnage Monitor
30 HP Dynamic Eddy Current Motor
