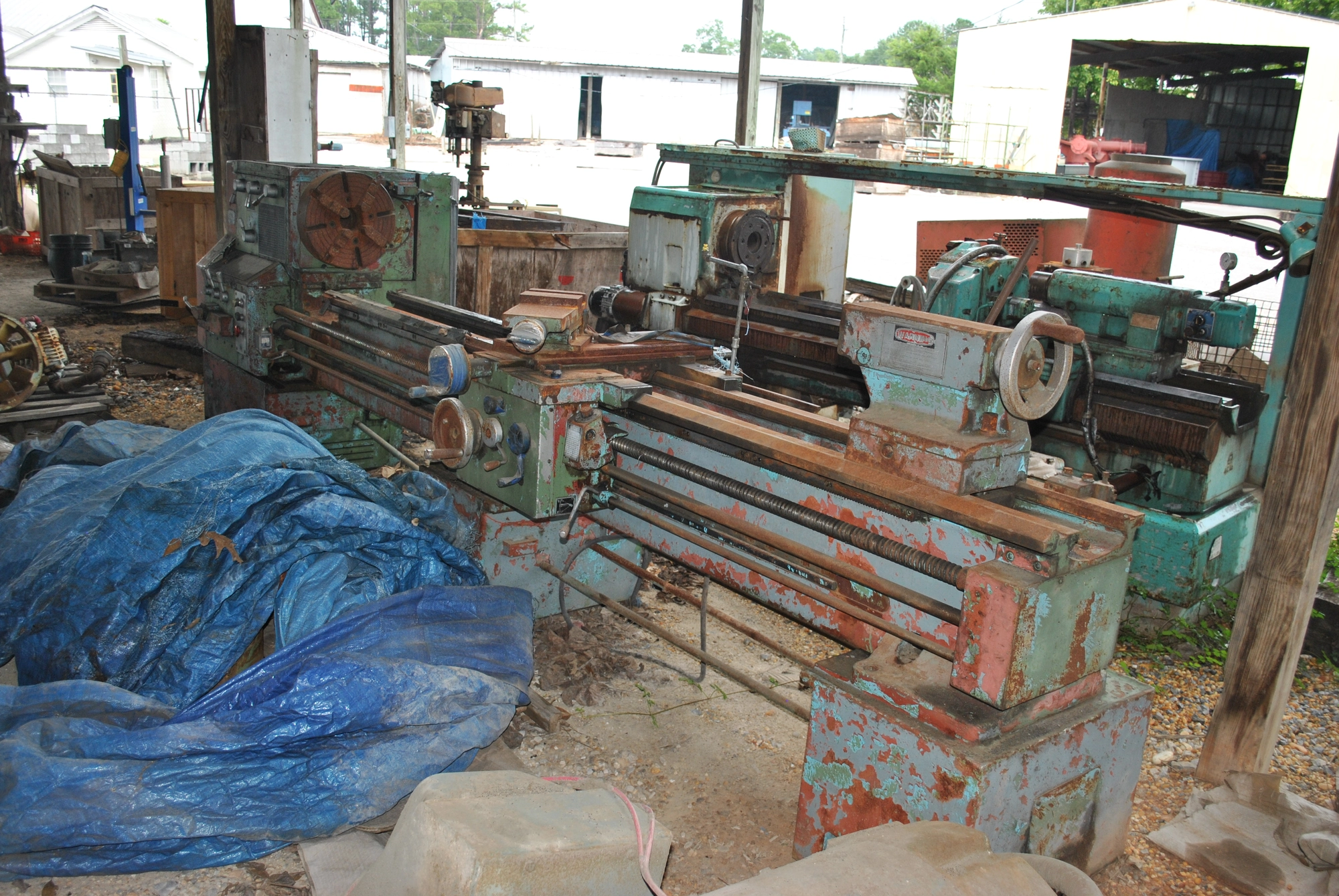

21”x120” Tarnow Polamco Model TUJ-50M Lathe, 15” -Jaw, Taper Attachment, Steady Rest
| Swing | 21" | 533.4 mm |
| Centers | 120" | 3,048 mm |
SWING OVER BED 22.375"
SWING OVER CARRIAGE 14-1/2"
SWING IN GAP 31.5"
DISTANCE BETWEEN CENTERS 120"
CROSS SLIDE TRAVEL 13"
COMPOUND TRAVEL 8"
SPINDEL BORE 3.6"
SPINDLE SPEEDS 20-1600 RPM
SPINDEL NOSE D1-11
LONGITUDINAL FEEDS (98) .0007-.72 IPR.
CROSS FEEDS (98) .0004-.36 IPR.
INCH THREADS 1 -112 TPI.
METRIC THREADS .25-28MM
TAILSTOCK QUILL DIAMETER 3- 1/8"
QUILL TRAVEL 6"
QUILL TAPER #5 MT
SPINDLE MOTOR 15 HP
15” -Jaw, Taper Attachment, Steady Rest
Offered "As-Is", Make Offer!
