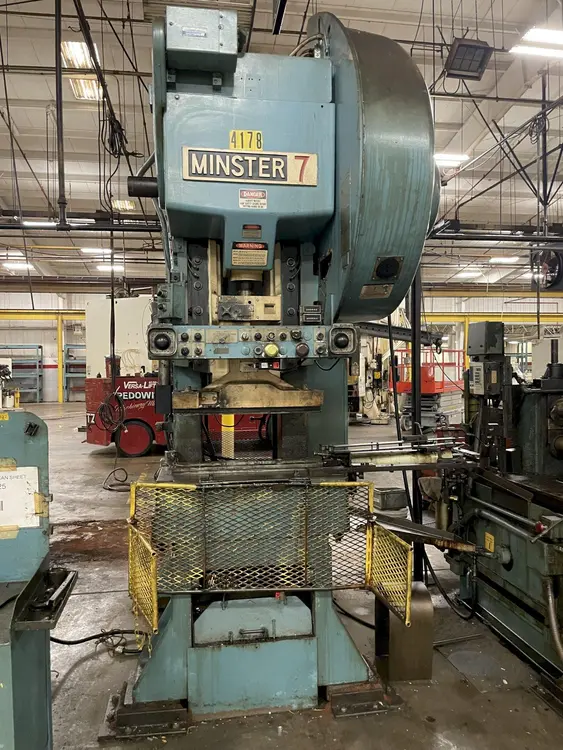

75 TON MINSTER MODEL 7 OBI PRESS, 4" Stroke, 75-150 SPM, 15" SH
| Tonnage | 75 T | 68.039 t |
| Stroke | 4" | 101.6 mm |
| Shut Height | 15" | 381 mm |
| SPM | 150 strokes/min. | 150 strokes/min. |
| Type (BG, Double Action, FW) | Flywheel | Flywheel |
| Crank (Single/Double) | Single | Single |
4" STROKE
4" RAM ADJUSTMENT
15" SHUT HEIGHT
75-150 SPM
36" x 24" BED
24" x 16" RAM
AIR CLUTCH & BRAKE
RECIRCULATING LUBE SYSTEM
PALM BUTTONS
72" LR X 93" FB X 129" TALL APPROXIMATE DIMENSIONS
APPROXIMATE WEIGHT: 17,500 LBS
YEAR: 1974
