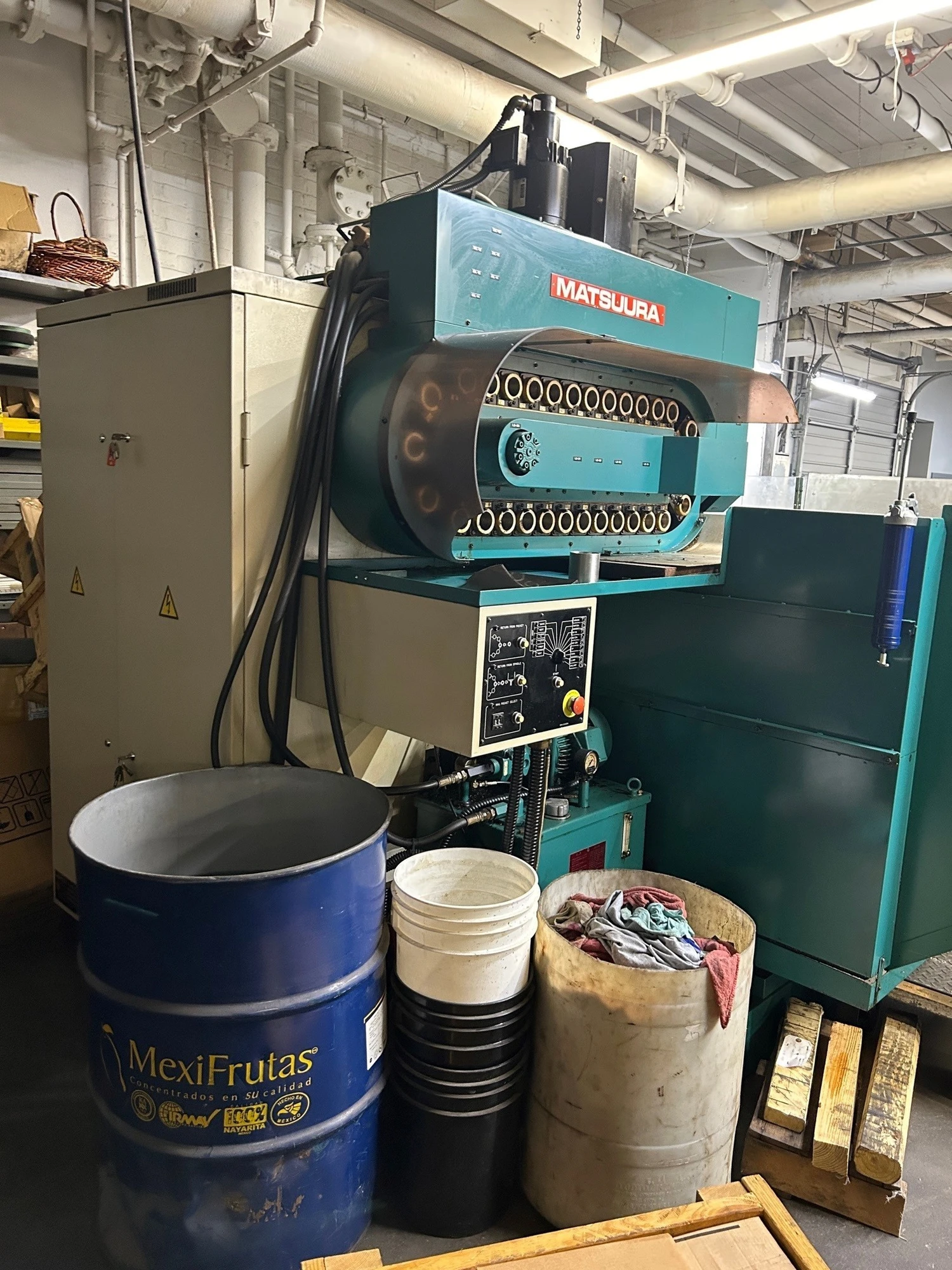

Make: Matsuura
Model: MC-800VF
Condition: Used, Overall In Good shape
Year New: 1986, 06
30-position tool belt for efficient tool changes.
Equipped with a Daikan spindle chiller for temperature control.
Serial No. 86035318, manufactured in 1986 (June).
Features Mazak Yasnak MX2 CNC controls for precision machining.
Operates on 200-220 Volts with a power rating of 25 kVA.
Travel distances: X-axis 31.5", Y-axis 18.1", Z-axis 20".
Equipped with a powerful 10 hp motor.
Spindle speed capable of reaching 4,500 RPM for various machining needs.
Automatic tool changer (ATC) with a capacity of 30 tools.
Table dimensions: Width 18", Length 46".
Spindle taper type: BT-40.
Three-axis machining capabilities for versatile operations.
Control system: CNC (YASNAC MX2) for precise and programmable machining.
Overall dimensions: 106" x 113" x 111".
Weight: 15,000 lbs., ensuring stability during machining operations.
| X - Axis | 31.5" | 800.1 mm |
| Y - Axis | 18.1" | 459.74 mm |
| Z - Axis | 20" | 508 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| # ATC | 30 | 30 |
| Taper | BT40 | BT40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 46" | 1,168.4 mm |
| # Axis | 3 | 3 |
| Weight | 15,000 | 15,000 |
