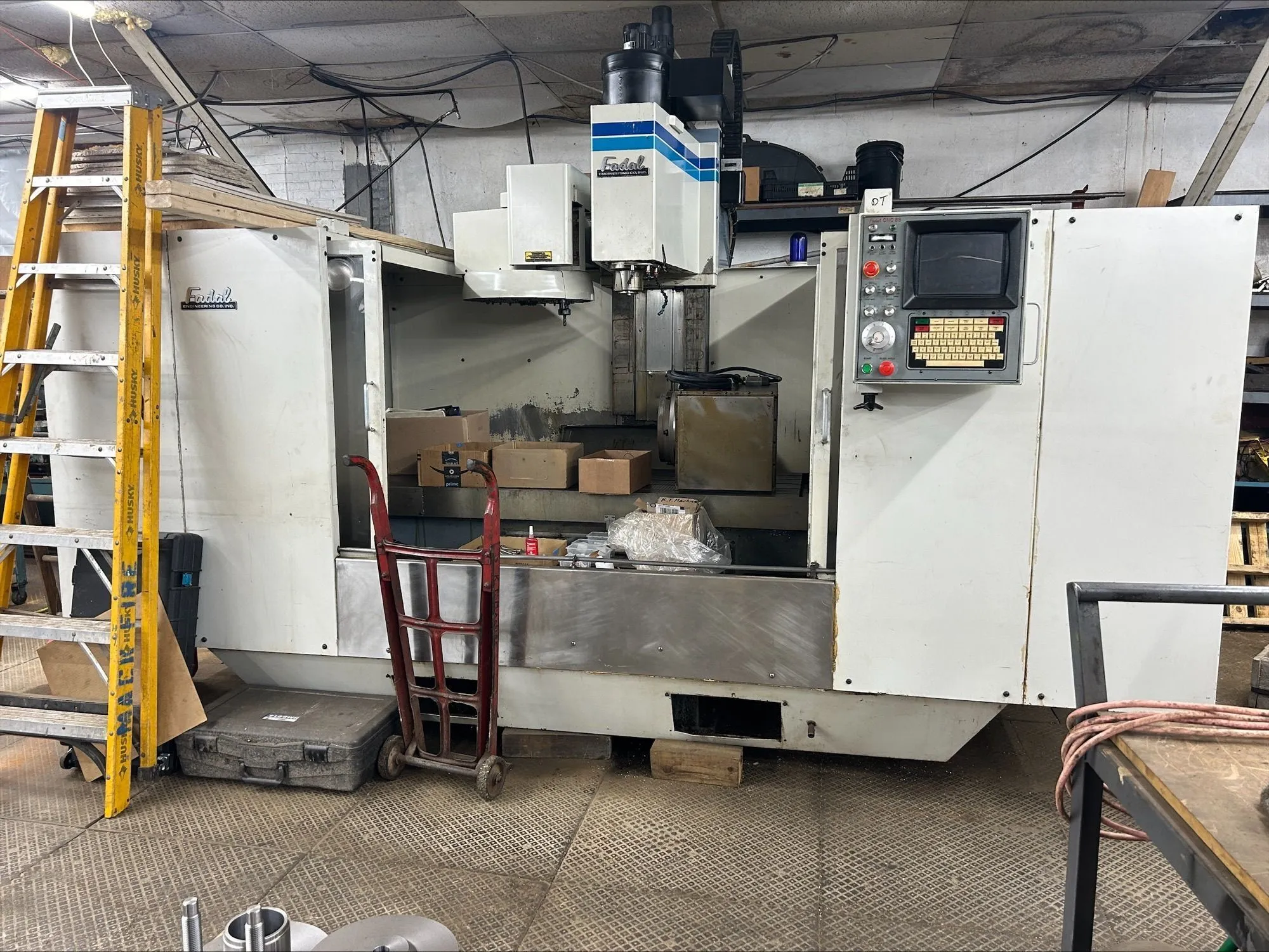

Make: Fadal
Model: 907-1 6030
Year New: 1995
Condition: Used, Overall In Great Shape, Machine under power and runs Excellent
Does not include the 4th axis sitting on the table in the photos. It does not go with that machine and is just being stored there.
Some tool holders available with machine.
30" x 60" Table Travel - Large Machine!
220v - 3 phase - 45 Amp
Fadal CNC 88 Control
Specifications:
Table Size 62.5" x 30"
Floor to Table Surface 36"
T-Slots (No. x Width x Span) 5 x .687" x 5.5"
Cutting Feed Rate (X/Y/Z) .01-250 ipm / 375 @ 150%
Rapid Travel Rate (X/Y/Z) 400(X/Y/Z) ipm
Max. Weight on Table 4,120 lbs.
Axis Drive Motor (X/Y/Z) 5,000 lbs. thrust
Ball Screw Size 44mm dia. (X/Y) 38mm (Z)
Longitudinal (X Axis) Travel 60"
Latitudinal (Y Axis) Travel 30"
Vertical (Z Axis) Travel 30"
Spindle Nose to Table 5.5" - 35.5"
Spindle Center to Column Ways 30"
Main Motor - Spindle Horse Power 22.5 HP
Spindle Torque 220 ft-lbs.
Accuracy, Axis Positioning ± .0003"
Accuracy, Axis Repeatability ± .00015"
Spindle Speed 10,000 rpm
Spindle Orientation Electromechanical
Spindle Taper No. 40
ATC, Number of Tools 21
ATC, Tool Selection Random / Bi-directional
Max. Tool Diameter 3"
(Without Adjacent Tools) (6")
Max. Tool Length 15"
Max. Tool Weight 15 lbs.
Machine Width x Depth 158" x 103"
Machine Max. Height 122"
Machine Weight 17,000 lbs.
Air Pressure Requirement (Momentary) 80-120 PSI, 15 SCFM
Power Requirement (3 Phase) 50/60 Cycle 240 VAC Full Load Current 68 Amps
Power Requirement 28 KVA
Equipped With: Fadal Multiprocessor CNC Control Chip Conveyor
