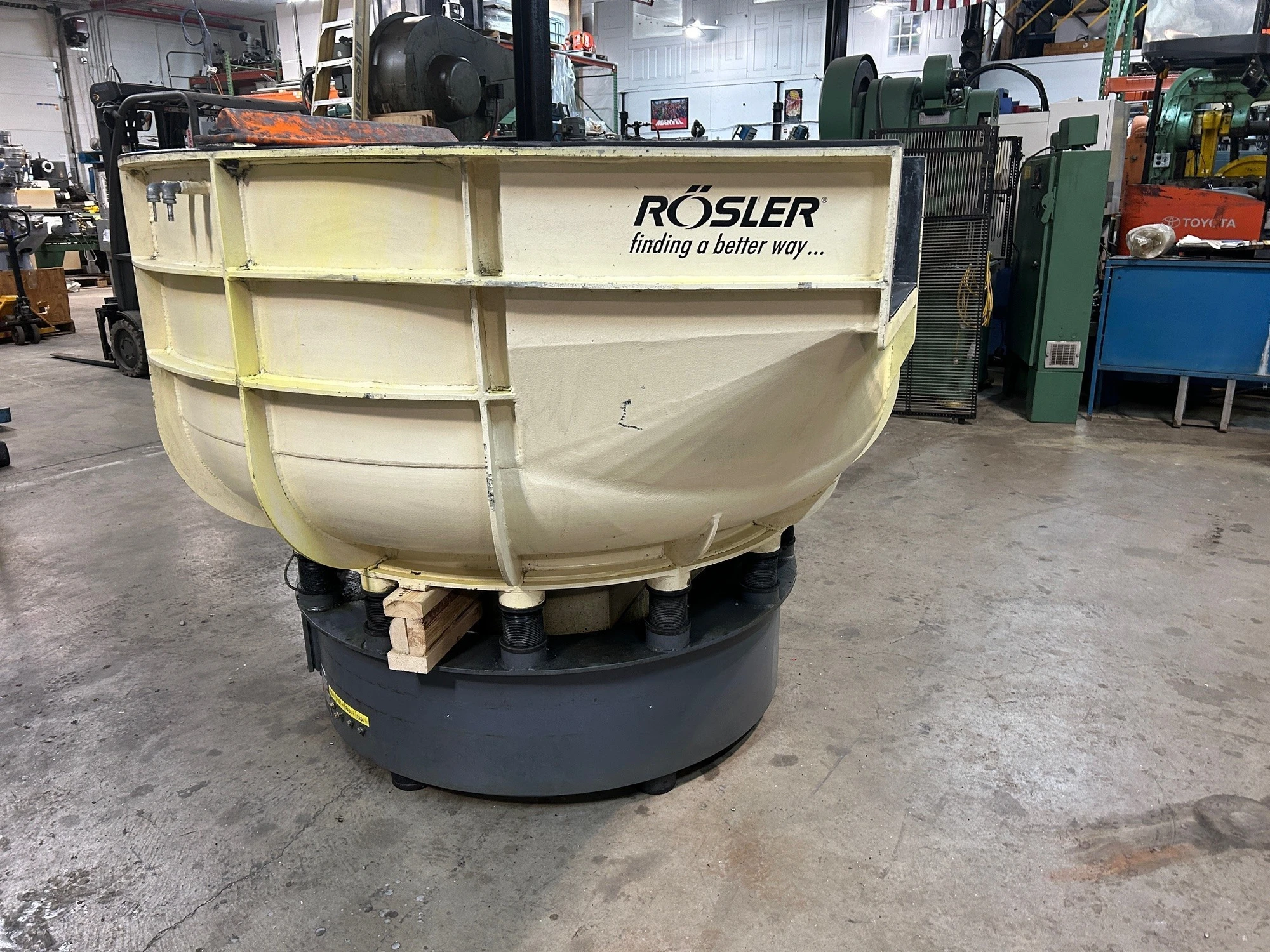

USED 2016 ROSLER R 1050.A

Make: Rosler
Model / Type: R 1050.A
RM 600
Model Range A
No: 75139
Year Made: 2016
Condition: Used, Overall In Good Shape
Included In Sale: 2 Bowls - 1 Conveyor
PLEASE NOTE:
* Bowls operate as they are but both have tears in the liner and probably need repair or relining.
• Conveyor is 80% complete. Needs a new belt and some missing parts. We can rebuild for cost plus or send to buyer for them to rebuild.
• No control panel with bowls.
----
Catalog Says This Model Was Designed For Magnetic Separation

A range of rotary vibrators and MS/E-V magnetic separator for specialized applications.

Designed for efficient processing and separation of ferro-magnetic workpieces.

Automated finishing process with easy-to-operate system controls for monitoring and control.

Processing bowl with horizontal and vertical re-enforcing ribs.

Special half-turn processing channel with increased height incline for effective discharge of magnetic workpieces, featuring high-performance MS/E-V magnetic separators.

Rösler two-speed vibratory motor with double conical mounting, operating at 1,500 and 1,000 RPM at 50 Hz, and equipped with grease-lubricated special heavy-duty bearings.

Hot-poured PUR polyurethane lining with extra thickness in critical wear areas for durability.

Flexible electrical controls and dosing technology to enhance adaptability and precision in operations.

- Bottom drains
- Undersize media separation in the media unload plug
- Various noise protection systems
Call or email If you Have Questions, We Will Get You Answers ASAP
Available Immediately

Total Volume: 1050 L ~ 277.5 Gallons
External Diameter Max: 1805 mm ≈ 70.87 in

Process Bowl Width: 465 mm ≈ 18.31 in

Overall Length of Processing Channel: 4100 mm ≈ 161.42 in

Machine Height: 1375 mm ≈ 54.13 in

Unload Height: 1105 mm ≈ 43.50 in

Height Media Unload Plug: 550 mm ≈ 21.65 in

Total Length including Magnetic Separator: 3000 mm ≈ 118.11 in

Media Unload Plug Diameter: 190 mm ≈ 7.48 in

Drive Power-

Speed(50/60hz): 1500 RPM
Connected Load: 7.5 kW ~ 10HP
