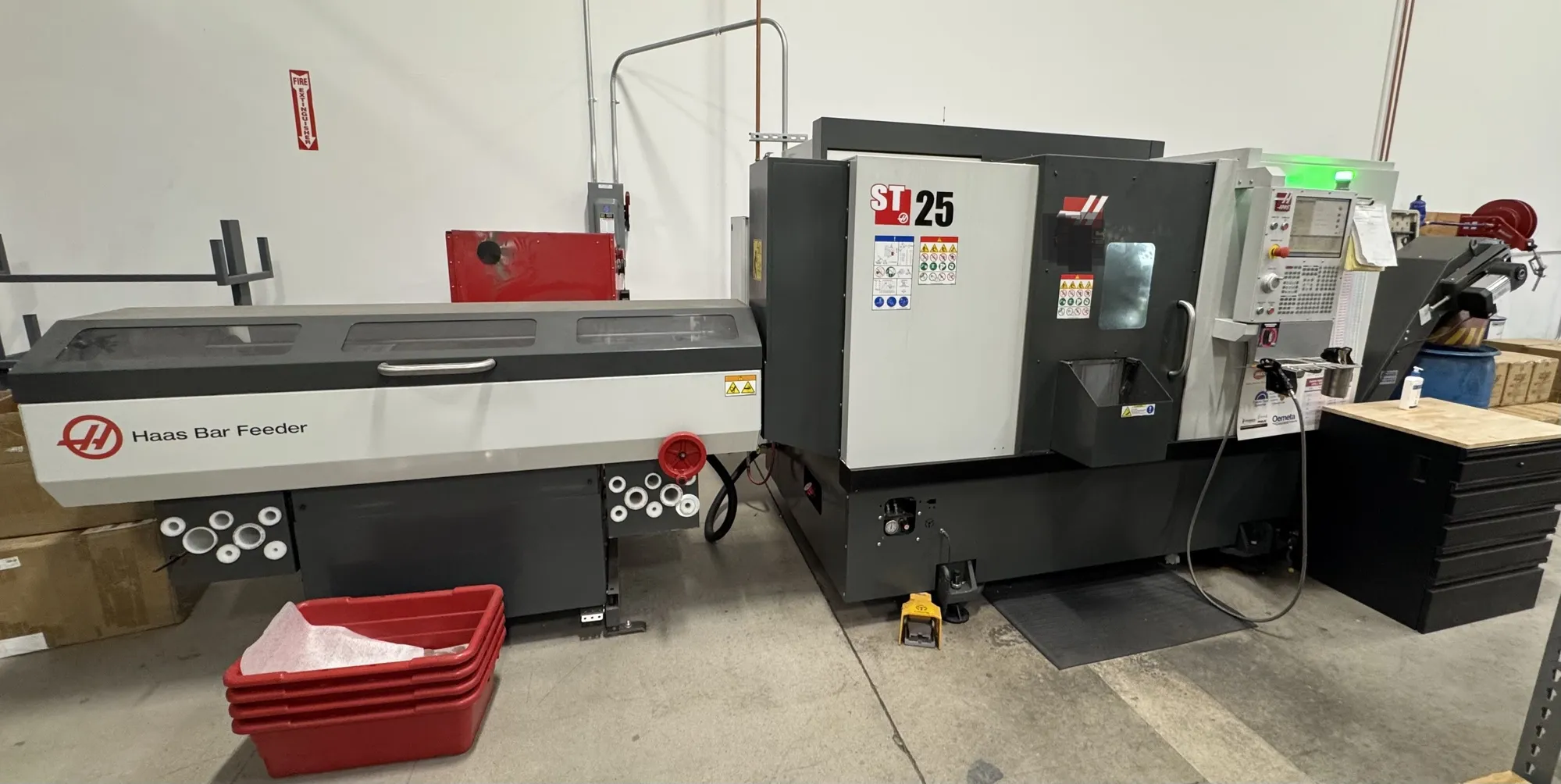

EXTREMELY LOW HOURS ON THIS 2021 HAAS ST-25. Used CNC Lathe Features include 20.75" swing, 21" machining length, 10" chuck, and 3" bar capacity. Delivers 30hp with a max RPM of 3400 and 15" turning diameter. No tailstock. Ideal for precision machining.
Swing | 20.75" | 527.05 mm |
Machining Length | 21" | 533.4 mm |
# Axis | 2 | 2 |
Bar Capacity | 3" | 76.2 mm |
Chuck Size | 10" | 254 mm |
Distance Between Centers | 31" | 787.4 mm |
Turning Diameter | 15" | 381 mm |
Power | 30 hp | 22.4 kW |
Max RPM | 3,400 RPM | 3,400 RPM |
Tailstock | No | No |
Live Tooling | No | No |
Sub Spindle | No | No |
# of Turrets | 1 | 1 |
Hole Thru | 3.5 in | |
Dimensions | 126" x 83" x 71" | 126" x 83" x 71" |
Weight | 10500 | 10500 |
Tool Pre-setter
Parts Catcher
Chip conveyor
Bar Feeder w/ Liners
10" Chuck included
