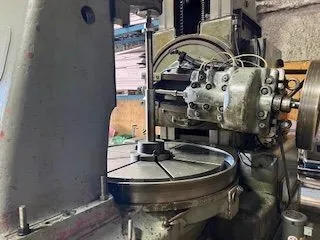

The TOS FO-16 is a heavy-duty gear hobbing machine made by TOS in the Czech Republic. It's used to cut gears by rotating the gear blank and a cutter called a hob at the same time.
| Maximum Workpiece Diameter | 62.992" | 1,600 mm |
| Horz/Vert | Vert | Vert |
| Maximum Diametral Pitch | 1.5 dp | 1.5 dp |
| Module | 16 | 16 |
| Axial Travel | 22.047" | 560 mm |
| Maximum Hob Diameter | 9.8425" | 250 mm |
| Hob Arbor Size | 1.5" | 38.1 mm |
| Table Diameter | 53.15" | 1,350 mm |
| Table Hole Diameter | 7.0866" | 180 mm |
| Control Manufacturer | Conventional | Conventional |
| Dimensions | 4300 x 2000 mm | 4300 x 2000 mm |
| Weight | 19,000 kg | 19,000 kg |
Standard Hobbing Head
Tangential Hobbing Head
1.25" and 1.5" Hob Arbors
Set of Change Gears
Tailstock
Operating Manual and Electrical Drawings
