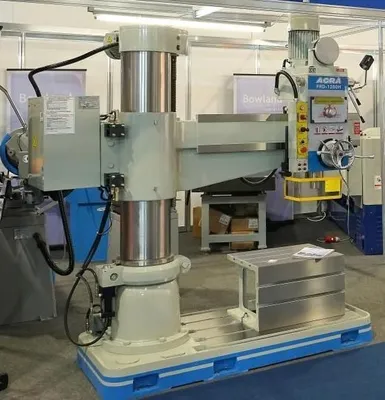

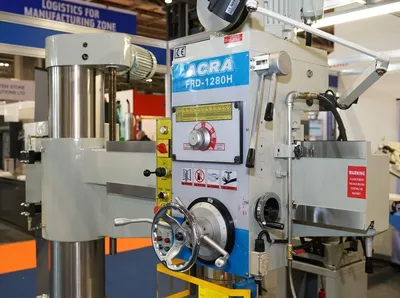

Our ACRA Radial Arm Drills offer premium build quality with features including power spindle feeds, coolant systems and safety features to enhance productivity.
Heavy-duty construction & compact in design, the radial drilling machine is the most versatile type of Drill there is.
| Arm Length | 1,700 mm | 5.58' |
| Column Dia. | 301.6 mm | 11.874" |
| Power | 3 hp | 2.2 kW |
| RPM | 1,500 RPM | 1,500 RPM |
| Dimensions | (LxWxH) 2286x990x2235mm | (LxWxH) 2286x990x2235mm |
| Weight | 2049 Kgs | 2049 Kgs |
Drilling Capacity – Steel 50.8mm
Drilling Capacity – Cast Iron 60.32mm
Tapping Capacity – Steel 25.4mm
Tapping Capaicty – Cast Iron 31.75mm
Spindle Stroke 250.8mm
Spindle Taper MT 4
Spindle Speed 44~1500rpm
Spindle Feeds 0.02-0.06ipr
Column Diameter 301.6mm
Max Dist Spindle To Column 1244.6mm
Min Dist Spindle To Column 330.2mm
Max Dist Base To Spindle 1231.9mm
Min Dist Base To Spindle 536.5mm
Horizontal Headstock Travel 914.4mm
Spindle Drive Motor 3 HP
Arm Elevation Motor 2 HP
Coolant Pump Motor 1/8 HP
Hydraulic Pump Motor 1 HP
Net Weight 2049 Kgs
Length 2286mm
Width 990mm
Height 2235mm
1700mm Arm length,5 HP Motor, 5MT Spindle, Box Table, Coolant, Safety Brake.
Included as Standard;
Coolant System
Lovo Machine Lamp
Tee Slotted Box Table
Interlocked Spindle Guard
DC Injection Brake, rapid stop for the spindle.
