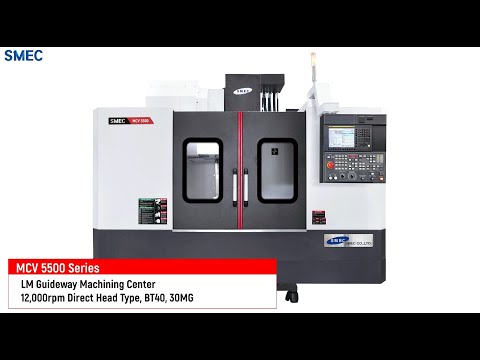

Discover precision with the new SMEC MCV 5500 Vertical Machining Center. Features CAT40 spindle taper, 41.34" X travel, and 12,000 RPM spindle speed. Equipped with a 47.25" x 21.26" table and 30-tool magazine for enhanced productivity.
PDF
http://hillaryinc.net/smecpdf/Vertical%20Mills/samsung_smec_MCV%204600_5500%20Eng.(A4).pdf
| Control | CNC (Fanuc) | CNC (Fanuc) |
| SPINDLE TAPER | CAT40 (BIG PLUS) | CAT40 (BIG PLUS) |
| X Travel | 41.34" | 1,050 mm |
| Y Travel | 21.66" | 550.16 mm |
| Z Travel | 20.48" | 520.19 mm |
| TABLE (L) | 47.25" | 1,200.1 mm |
| TABLE (W) | 21.26" | 540 mm |
| SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| SPINDLE HP | 25 hp | 18.6 kW |
| MAGAZINE CAPACITY | 30 | 30 |
