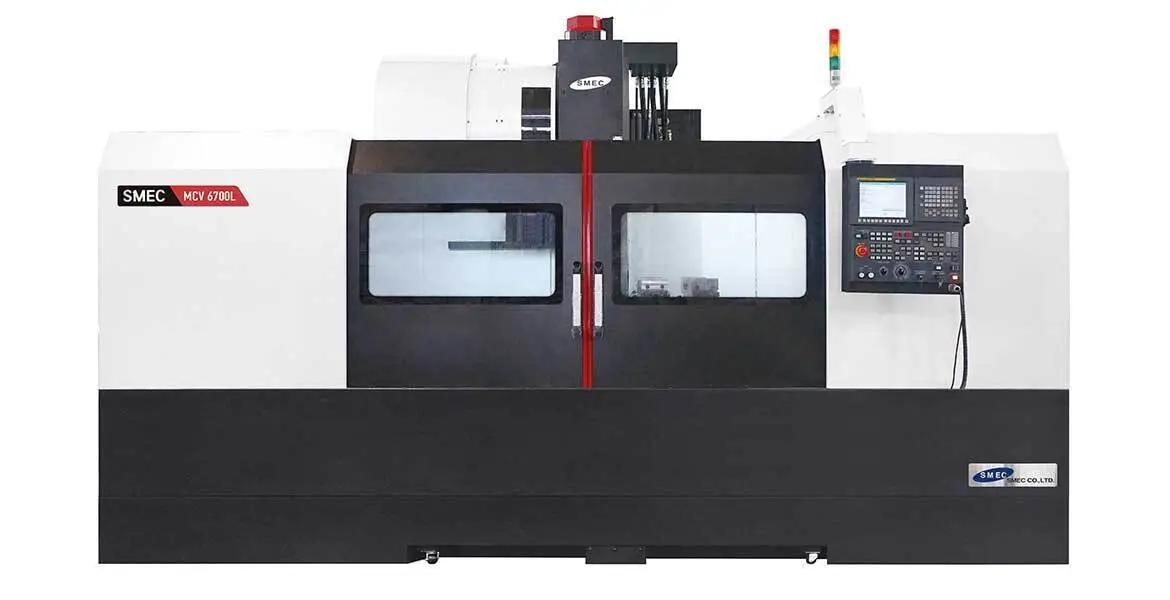

Explore the new SMEC MCV 6700L Vertical Machining Center with CAT40 spindle taper, 12,000 RPM, and a 25 hp spindle. Features 82.68" X travel and 30-tool magazine, ideal for enhanced precision and productivity in your operations.
PDF
http://hillaryinc.net/smecpdf/Vertical%20Mills/samsung_smec_MCV_6700_6700L_(mm)_Eng.pdf
| Control | CNC (Fanuc) | CNC (Fanuc) |
| SPINDLE TAPER | CAT40 (BIG PLUS) | CAT40 (BIG PLUS) |
| X Travel | 82.68" | 2,100.1 mm |
| Y Travel | 26.38" | 670.05 mm |
| Z Travel | 20.48" | 520.19 mm |
| TABLE (L) | 86.62" | 2,200.1 mm |
| TABLE (W) | 25.99" | 660.15 mm |
| SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| SPINDLE HP | 25 hp | 18.6 kW |
| MAGAZINE CAPACITY | 30 | 30 |
