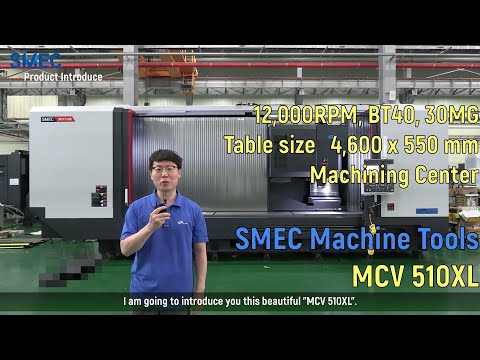

Brand new SMEC (SAMSUNG) MCV 510XL Vertical Machining Center with CAT40 taper and 12,000 RPM spindle speed. Features include 25 hp spindle, 157.5" X travel, and a 30-tool magazine, offering extensive capabilities for diverse machining needs.
PDF
http://hillaryinc.net/smecpdf/Vertical%20Mills/samsung_smec_MCV%20510XL%20Eng.%20(20.06.03).pdf
| Control | CNC (Fanuc) | CNC (Fanuc) |
| SPINDLE TAPER | CAT40 (BIG PLUS) | CAT40 (BIG PLUS) |
| X Travel | 157.5" | 4,000.5 mm |
| Y Travel | 20.1" | 510.54 mm |
| Z Travel | 21.7" | 551.18 mm |
| TABLE (L) | 181" | 4,597.4 mm |
| TABLE (W) | 21.7" | 551.18 mm |
| SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| SPINDLE HP | 25 hp | 18.6 kW |
| MAGAZINE CAPACITY | 30 | 30 |
