| size | 1/4" x 10' | 1/4" x 10' |
| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 10' | 3 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 36" | 914.4 mm |
| Power | 15 hp | 11.2 kW |
| SPM | 14 strokes/min. | 14 strokes/min. |

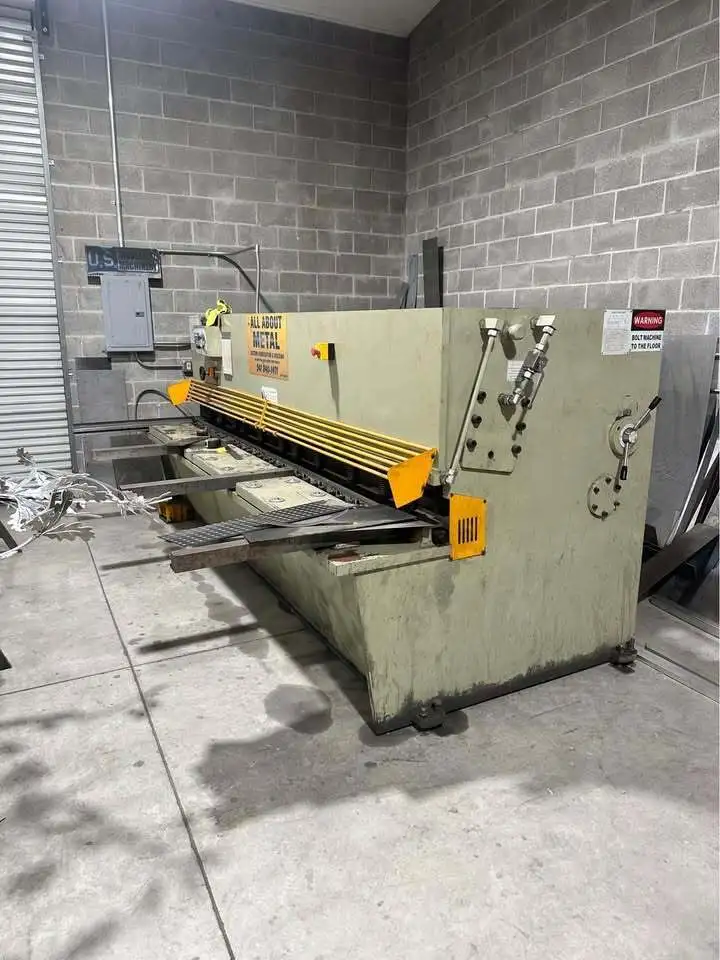

U.S. Industrial US1025 10′ x 1/4″ Hydraulic Shear (2014)
Inventory # 8047
Model: US1025
Specifications:
Sheet Size: 126″
Shearing Capacity: 1/4″ Mild Steel @ 65,000 PSI
Shear Angle: 1° 30′
No Load Strokes: 14
Throat Depth: 4.7″
Adjustment Range of Back Gauge: 3/4″ – 36″
Hydraulic Oil Capacity: 71 Gallons
Motor: 15 HP / 230v, 460v / 3ph
Standard Features:
Squaring arm, 39 1/2″ from blade to end
High carbon, high chrome shear blades
Ball transfers on each table segment
Manual quick change blade gap adjustment
Stroke counter
Front-controlled power back gauge
Blade guard, micro switch protected
Hydraulic, electrical overload protection
Automatic swing-up on back gauge
Three bolts on table segments
Hold-downs faced with anti-mar neoprene
Swing beam design
Pressure sensing hold downs
Electric stroke adjustment
Operator control console
Shadow lighting
Low noise gear pump
Support arms
Material drop support chute
Mechanical Specifications:
Dimensions: 157″ x 63″ x 63″ H
Weight: approx. 15,550 lbs.
